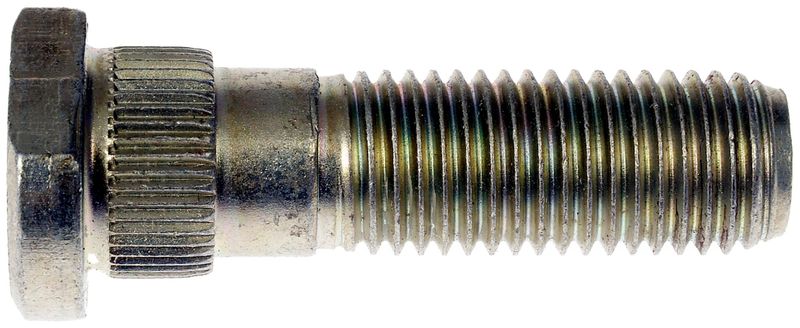

Dorman 610-803 Wheel Lug Stud - Front
Dorman 610-803 Wheel Lug Stud for Mazda 2
Dorman 610-803 is a metric wheel lug stud built from carbon steel and finished in zinc plating for strength and corrosion resistance. It is a standard replacement wheel stud for front applications on select 2011-2014 Mazda 2 models with M12-1.50 fine threads.
Key Features
- Carbon steel construction for durable wheel fastening performance
- Zinc-plated silver finish
- M12-1.50 fine thread, clockwise (right-hand) direction
- Serrated shoulder design for secure seating in the hub
- Standard replacement wheel lug stud for front fitment
- Thread length: 1.18 in; under-head length: 44.5 mm
- Head diameter: 20 mm; knurl diameter: 0.58 in
Detailed Description
Dorman 610-803 wheel lug stud is engineered for front wheel service on 2011-2014 Mazda 2 models. The carbon steel body is tested to automotive industry standards for strength, longevity, and safety, while the serrated shoulder helps the stud seat firmly in the hub. With metric M12-1.50 threads and a right-hand thread direction, this lug stud matches common OE-style wheel hardware requirements for Mazda 2 front wheel applications. This part cross-references D65233062 for the same application.
What It Helps Solve
- Stripped or damaged wheel stud threads
- Broken or bent front wheel studs
- Loose wheel fastening caused by worn hardware
- Corrosion-related stud replacement during brake or hub service
- Wheel mounting issues on 2011-2014 Mazda 2 front hubs
Installation Notes and Tips
Verify thread size, thread pitch, shoulder diameter, and under-head length before installation. This part is listed for front position use on 2011-2014 Mazda 2 models. Confirm hub and wheel specifications match M12-1.50 hardware and right-hand thread direction before service. Proper torque procedure should be followed after installation.
Quality Assurance
Dorman manufactures this wheel lug stud from carbon steel and tests it to demanding automotive industry standards to support strength, longevity, and safety.
| Brand | Dorman |
|---|---|
| Part Number | 610-803 |
| Material | Acero al carbono |
| Material | Carbon steel |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Length | 49 |
| Color | Plateado |
| Color | Silver |
| Bolt Grade | 10.9 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Thread Type | Fine |
| Thread Type | Fino |
| Shoulder Diameter | 12 |
| Shoulder Shape | Horquilla dentada |
| Shoulder Shape | Serrated shoulder |
| Shoulder Thickness | 12 |
| Thread Size | M12-1.50 |
| Contenidos del paquete | 10 espárragos de la rueda |
| Diámetro de la rosca | 12 mm |
| Diámetro del nudo (in) | 0,58in |
| Estilo | Birlo dentado |
| Estilo | Cabeza de gancho |
| Finish | Enchapado en cinc |
| Finish | Zinc plated |
| Head Diameter | 20 mm |
| Head Diameter | 20mm |
| Knurl Diameter (In) | 0.58 in |
| Longitud de la rosca (in) | 1.18in |
| Longitud del reborde (in) | 0.571 in. |
| Nariz de inicio rápido | No |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Mazda | 2 | Front | Thread Length (In): 1.18 in |
| 2013 | Mazda | 2 | Front | Thread Length (In): 1.18 in |
| 2012 | Mazda | 2 | Front | Thread Length (In): 1.18 in |
| 2011 | Mazda | 2 | Front | Thread Length (In): 1.18 in |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
