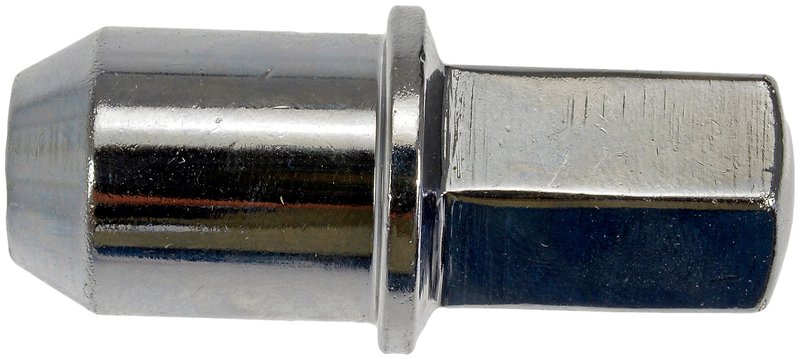

Dorman 611-580 Wheel Lug Nut
OE-Style Wheel Lug Nut Replacement
Dorman 611-580 is a direct replacement wheel lug nut for select Chevrolet Colorado and GMC Canyon applications. It uses a one-piece steel construction with a chrome-plated finish to replace failure-prone two-piece OE lug nuts and restore secure wheel fastening.
Key Features
- One-piece steel construction for improved durability
- Chrome-plated silver finish
- Conical seat, 60-degree seat style
- Closed-end, domed top nut design
- Metric M12-1.50 thread size with clockwise right-hand thread
- 17 mm hex size and 62 mm overall length
- Direct OE fit and function replacement for select applications
Detailed Description
This Dorman OE FIX wheel lug nut is built to replace the original two-piece design found on certain vehicles, where the outer cover can warp, bulge, or become difficult to remove after repeated use or moisture intrusion. Part number 611-580 uses a single-piece carbon steel design to help avoid those common failure points while maintaining the OE-style fit and function expected for wheel service. It is a fitment-based replacement for 2011-2012 Chevrolet Colorado and 2011-2012 GMC Canyon models, and it cross-references OE part number 9597985 for the same application.
What It Helps Address
- Rounded, swollen, or damaged lug nut covers
- Difficulty removing stuck factory lug nuts
- Corrosion-related lug nut service issues
- Wheel damage caused by forced lug nut removal
- Replacement needs after OE lug nut wear or failure
Installation Notes and Tips
Verify thread size, seat style, hex size, and overall length before installation. This part uses M12-1.50 threads, a conical 60-degree seat, and a closed-end domed top profile. Use the correct 17 mm wheel nut tool and follow the vehicle manufacturer’s torque specifications during installation. Confirm fitment for 2011-2012 Chevrolet Colorado and 2011-2012 GMC Canyon before ordering.
Quality Assurance
Dorman OE FIX replacement parts are engineered to match OE fit and function while addressing known failure points in the original design. Part number 611-580 is built as a steel replacement for select Colorado and Canyon wheel service applications.
| Brand | Dorman |
|---|---|
| Part Number | 611-580 |
| Material | Acero |
| Material | Steel |
| 10962 | No |
| 10962 | Non |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Head Shape | Hex |
| Head Shape | Hexagonal |
| Color | Plateado |
| Color | Silver |
| Finish | Chrome plated |
| Finish | Enchapado en cromo |
| Width | 27.5 |
| End Type | Cerrado |
| End Type | Closed |
| Washers Included | No |
| Washers Included | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Thread Type | Media |
| Thread Type | Medium |
| Hex Size | 17 mm |
| Seat Type | Conical |
| Seat Type | Cónico |
| SAE or Metric | Metric |
| SAE or Metric | Métrico |
| Depth | 62 |
| Thread Size | M12-1.50 |
| Wheel Lock Key Included | No |
| Wheel Lock Key Included | Non |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Chevrolet | Colorado | N/A | Width: 27.5 mm |
| 2012 | GMC | Canyon | N/A | Width: 27.5 mm |
| 2011 | Chevrolet | Colorado | N/A | Width: 27.5 mm |
| 2011 | GMC | Canyon | N/A | Width: 27.5 mm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
