Dorman 611-936 Wheel Lug Nut
OE Quality 60-Day Returns
Dorman

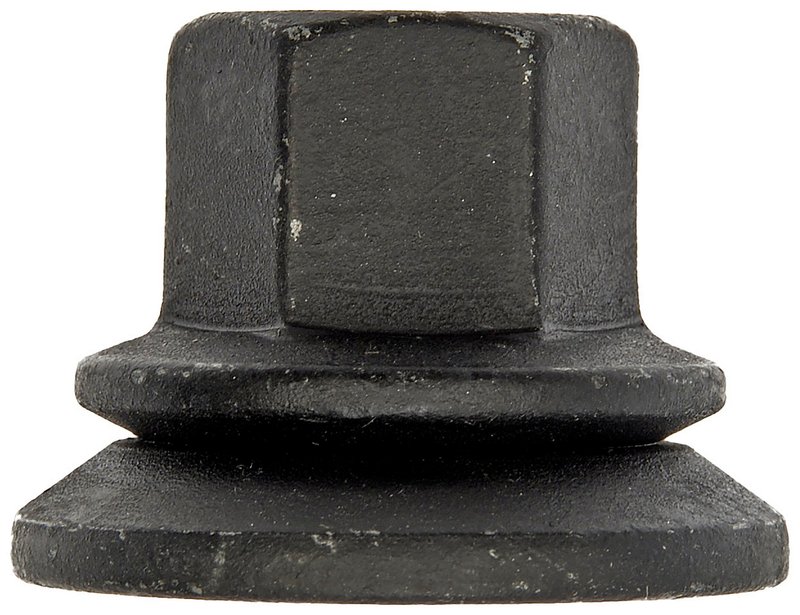

Dorman 611-936 Wheel Lug Nut

Brand Dorman 611-936
Material Acero
Material Steel
10962 No
10962 Non
Thread Direction Clockwise (right)
Thread Direction Rotar en el sentido de las agujas del reloj (derecha)
Head Shape Hex
Head Shape Hexagonal
Color Black
Color Negro
Color Noir
Finish Enchapado en cinc
Finish Zinc plated
Width 40.3
End Type Abierto
End Type Open
Washers Included No
Washers Included Non
Grade Type Reemplazo estándar
Grade Type Standard replacement
Thread Type Media
Thread Type Medium
Hex Size 22 mm
Seat Type Cónico
Seat Type Tapered
SAE or Metric Metric
SAE or Metric Métrico
Depth 28.5
Thread Size M14-1.50
Wheel Lock Key Included No
Fits Ram · 53 vehicles

OE-style replacement. Matches original equipment fit, function, and performance.

Steel construction. Built from durable steel for long service life.

Zinc plated finish. Helps resist corrosion and maintain a clean look.

Cross-references 6509424AA and 6514130AA for the same application. See all 2.

$110.78Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $110.78
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Lug Nut options

Dorman 611-936 Wheel Lug Nut Overview

Dorman 611-936 wheel lug nuts are built as a standard replacement for specified Ram heavy-duty applications. With a steel construction, zinc-plated finish, and tapered flange seat, they are made to match OE fit, function, and performance for Ram 3500 and Ram 4000 wheel service.

Designed for metric M14-1.50 threads and a 22 mm hex, this open-end lug nut supports direct replacement needs on select Ram 3500 and Ram 4000 models. The black finish and right-hand thread direction align with common OE-style hardware requirements.

Key Features

  • Brand: Dorman
  • Part number: 611-936
  • Steel construction for durable service
  • Zinc-plated finish with black appearance
  • Metric M14-1.50 thread size and 14 mm thread diameter
  • 22 mm hex size for serviceability
  • Tapered flange seat for proper wheel contact
  • Open-end design with right-hand thread direction
  • Standard replacement grade for OE-style fitment

Detailed Product Description

Dorman 611-936 is a wheel lug nut engineered to match the fit, function, and performance of original equipment hardware on specified vehicles. It uses a steel body with a zinc-plated finish, a hex head, and a tapered flange seat to support secure wheel fastening on compatible Ram applications. This part number is listed for 2012-2025 Ram 3500 and 2012-2024 Ram 4000, with fitment notes calling out a 40.3 mm width. If you are replacing worn or damaged wheel hardware on a Ram 3500 or Ram 4000, Dorman 611-936 provides an OE-style replacement path.

This part cross-references Mopar 6509424AA and 6514130AA for the same application.

What This Part Helps Address

  • Rounded or damaged lug nut hex surfaces
  • Corroded or rusted wheel hardware
  • Improper wheel clamping from worn fasteners
  • Replacement needs after wheel service or tire rotation
  • OE hardware replacement on Ram 3500 and Ram 4000 trucks

Installation Notes and Tips

  • Verify M14-1.50 thread size, 22 mm hex, and tapered flange seat before installation.
  • Confirm the wheel and stud specification matches the listed Ram 3500 and Ram 4000 fitment.
  • Inspect wheel studs and seating surfaces for wear or damage before tightening.
  • Use the correct torque specification from the vehicle manufacturer during installation.
  • Check lug nut seating after initial driving and re-torque if required by service procedure.

Quality Assurance

Dorman designs this wheel lug nut to meet exacting specifications for long service life and OE-style performance on the listed Ram applications. Part number 611-936 is built as a standard replacement hardware solution for Ram 3500 and Ram 4000 wheel service.

This part fits 53 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2025Ram3500Width: 40.3 mm
2025Ram4500Width: 40.3 mm
2025Ram5500Width: 40.3 mm
2024Ram3500Width: 40.3 mm
2024Ram4000Width: 40.3 mm
2024Ram4500Width: 40.3 mm
2024Ram5500Width: 40.3 mm
2023Ram3500Width: 40.3 mm
2023Ram4000Width: 40.3 mm
2023Ram4500Width: 40.3 mm
2023Ram5500Width: 40.3 mm
2022Ram3500Width: 40.3 mm
2022Ram4000Width: 40.3 mm
2022Ram4500Width: 40.3 mm
2022Ram5500Width: 40.3 mm
2021Ram3500Width: 40.3 mm
2021Ram4000Width: 40.3 mm
2021Ram4500Width: 40.3 mm
2021Ram5500Width: 40.3 mm
2020Ram3500Width: 40.3 mm
2020Ram4000Width: 40.3 mm
2020Ram4500Width: 40.3 mm
2020Ram5500Width: 40.3 mm
2019Ram3500Width: 40.3 mm
2019Ram4000Width: 40.3 mm
2019Ram4500Width: 40.3 mm
2019Ram5500Width: 40.3 mm
2018Ram3500Width: 40.3 mm
2018Ram4000Width: 40.3 mm
2018Ram4500Width: 40.3 mm
2018Ram5500Width: 40.3 mm
2017Ram3500Width: 40.3 mm
2017Ram4000Width: 40.3 mm
2017Ram4500Width: 40.3 mm
2017Ram5500Width: 40.3 mm
2016Ram3500Width: 40.3 mm
2016Ram4000Width: 40.3 mm
2016Ram4500Width: 40.3 mm
2016Ram5500Width: 40.3 mm
2015Ram3500Width: 40.3 mm
2015Ram4000Width: 40.3 mm
2015Ram4500Width: 40.3 mm
2015Ram5500Width: 40.3 mm
2014Ram3500Width: 40.3 mm
2014Ram4000Width: 40.3 mm
2014Ram4500Width: 40.3 mm
2014Ram5500Width: 40.3 mm
2013Ram3500Width: 40.3 mm
2013Ram4000Width: 40.3 mm
2012Ram3500Width: 40.3 mm
2012Ram4000Width: 40.3 mm
2012Ram4500Width: 40.3 mm
2012Ram5500Width: 40.3 mm
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
6509424AA6514130AA
