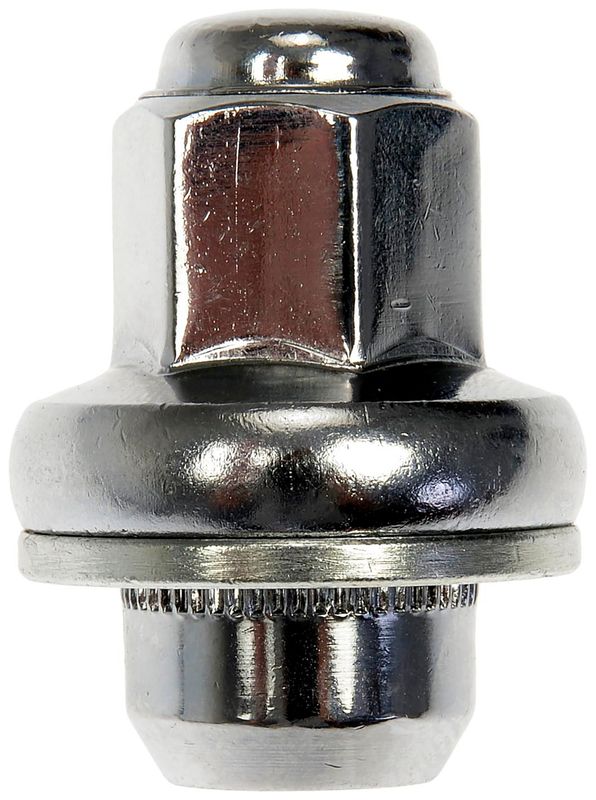

Dorman 611-947 Wheel Lug Nut
| Brand | Dorman 611-947 |
|---|---|
| Material | Acero |
| Material | Steel |
| 10962 | No |
| 10962 | Non |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Head Shape | Hex |
| Head Shape | Hexagonal |
| Color | Plateado |
| Color | Silver |
| Finish | Chrome plated |
| Finish | Enchapado en cromo |
| Width | 35.8 |
| End Type | Cerrado |
| End Type | Closed |
| Washers Included | Oui |
| Washers Included | Sí |
| Washers Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Thread Type | Media |
| Thread Type | Medium |
| Hex Size | 21 mm |
| Seat Type | Cónico |
| Seat Type | Tapered |
| SAE or Metric | Metric |
| SAE or Metric | Métrico |
| Depth | 48 |
| Thread Size | M14-1.50 |
| Wheel Lock Key Included | No |
| Fits | Lexus · 24 vehicles |
OE direct replacement. Matches original equipment fit, function, and performance.
Chrome-plated steel. Durable construction with a clean silver finish.
Closed-end hex design. Standard replacement wheel lug nut with tapered seat.
Cross-references 9094201111 for the same application. See all 1.
Dorman 611-947 Wheel Lug Nut for Lexus
Dorman 611-947 is a metric wheel lug nut built to match the fit, function, and performance of original equipment hardware on specified Lexus applications. It uses durable steel construction with a chrome-plated silver finish and a closed, domed-top design for a clean OE-style appearance.
Compatible With 2018-2020 Lexus LC500, 2018-2020 Lexus LC500h, 2007-2017 Lexus LS460, and 2010-2016 Lexus LS600h. This Dorman 611-947 lug nut uses an M14-1.50 thread, 21 mm hex, tapered seat, and right-hand thread for direct replacement service on the listed vehicles.
Key Features
- OE-style wheel lug nut for specified Lexus fitments
- Steel construction for long service life
- Chrome-plated silver finish
- Closed, domed-top nut design
- M14-1.50 thread pitch with 21 mm hex
- Tapered seat and right-hand thread
- Standard replacement grade
- Interchange reference: 9094201111
Detailed Description
Built for Lexus LC500, LC500h, LS460, and LS600h applications, Dorman 611-947 is engineered to match the original hardware dimensions and seating style used on the vehicle. The 35.8 mm width, 48 mm overall length, and metric thread specification help support proper wheel retention when the correct wheel and hub setup is used. The chrome-plated finish also provides a clean appearance that matches factory-style wheel hardware.
This part number, 611-947, is a direct-fit wheel lug nut solution for owners replacing worn, damaged, or corroded lug nuts on the listed Lexus models. It is also a practical cross-reference for 9094201111 in the same application.
Common Problems It Can Address
- Rounded or damaged lug nut hex surfaces
- Corrosion on original wheel hardware
- Improper wheel clamping from worn fasteners
- Missing or mismatched lug nuts during wheel service
- Restoring OE-style appearance on Lexus wheels
Installation Notes and Tips
Verify thread size, seat style, and hex size before installation. Use the correct 21 mm tool and tighten lug nuts in the vehicle manufacturer’s recommended sequence and torque specification. Confirm that the tapered seat matches the wheel design before service. For Lexus LC500, LC500h, LS460, and LS600h applications, Dorman 611-947 should be installed only on the listed fitments.
Quality Assurance
Dorman designs this wheel lug nut to match OE fit, function, and performance on specified vehicles. It is manufactured from durable materials to exacting specifications for consistent service life and proper fit on the confirmed Lexus applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Lexus | LC500 | Width: 35.8 mm |
| 2020 | Lexus | LC500h | Width: 35.8 mm |
| 2019 | Lexus | LC500 | Width: 35.8 mm |
| 2019 | Lexus | LC500h | Width: 35.8 mm |
| 2018 | Lexus | LC500 | Width: 35.8 mm |
| 2018 | Lexus | LC500h | Width: 35.8 mm |
| 2017 | Lexus | LS460 | Width: 35.8 mm |
| 2016 | Lexus | LS460 | Width: 35.8 mm |
| 2016 | Lexus | LS600h | Width: 35.8 mm |
| 2015 | Lexus | LS460 | Width: 35.8 mm |
| 2015 | Lexus | LS600h | Width: 35.8 mm |
| 2014 | Lexus | LS460 | Width: 35.8 mm |
| 2014 | Lexus | LS600h | Width: 35.8 mm |
| 2013 | Lexus | LS460 | Width: 35.8 mm |
| 2013 | Lexus | LS600h | Width: 35.8 mm |
| 2012 | Lexus | LS460 | Width: 35.8 mm |
| 2012 | Lexus | LS600h | Width: 35.8 mm |
| 2011 | Lexus | LS460 | Width: 35.8 mm |
| 2011 | Lexus | LS600h | Width: 35.8 mm |
| 2010 | Lexus | LS460 | Width: 35.8 mm |
| 2010 | Lexus | LS600h | Width: 35.8 mm |
| 2009 | Lexus | LS460 | Width: 35.8 mm |
| 2008 | Lexus | LS460 | Width: 35.8 mm |
| 2007 | Lexus | LS460 | Width: 35.8 mm |
