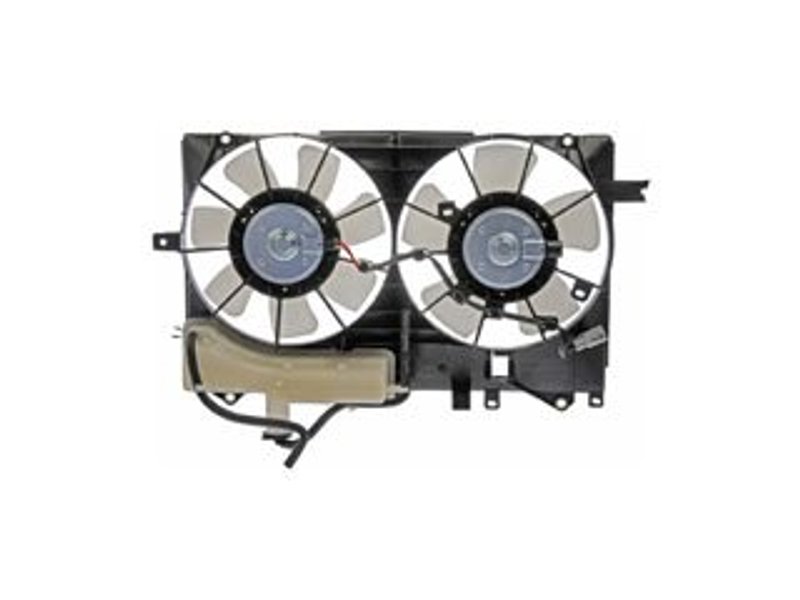

Dorman 620-509 Engine Cooling Fan Assembly

Overview of Dorman Engine Cooling Fan Assembly 620-509

The Dorman 620-509 engine cooling fan assembly is designed specifically for Toyota Prius models, providing reliable cooling performance. This assembly includes dual fans and a durable plastic shroud to ensure efficient airflow and engine temperature regulation.

• Compatible with Toyota Prius vehicles
• Includes two plastic fan blades for enhanced cooling
• Black plastic shroud included for proper fan alignment and protection
• Brushed motor type with two terminals and one male connector
• Part number 620-509 for precise fitment and replacement

Detailed Product Features and Specifications

This engine cooling fan assembly features a brushed motor type that delivers consistent performance for the Toyota Prius. The assembly includes two plastic fan blades, which are lightweight and resistant to corrosion. The black plastic shroud is designed to house the fans securely, improving airflow direction and protecting the fan blades from debris. With two terminals and a single male connector, installation and electrical connection are straightforward. The part number 620-509 ensures compatibility with the specified vehicle model, making it a direct replacement for the original equipment.

Applications and Common Issues Addressed

• Replaces faulty or worn cooling fan assemblies in Toyota Prius models
• Resolves overheating issues caused by inadequate fan operation
• Eliminates noise or vibration from damaged fan blades or motor
• Restores proper engine temperature control for optimal performance
• Prevents engine damage due to cooling system failure

Installation Notes and Tips

When installing the Dorman 620-509 cooling fan assembly, ensure the vehicle is powered off and cooled down. Disconnect the battery before removing the old fan assembly to avoid electrical hazards. Carefully detach the existing fan and shroud, noting the connector and terminal locations. Align the new black plastic shroud and secure the dual fan blades in place. Connect the male connector and terminals firmly to ensure proper electrical contact. Verify fan operation before completing the installation.

Quality Assurance and Warranty Information

Dorman engine cooling fan assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 620-509 part undergoes rigorous quality control to ensure durability and reliable performance in Toyota Prius vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship to provide confidence in your replacement part.
