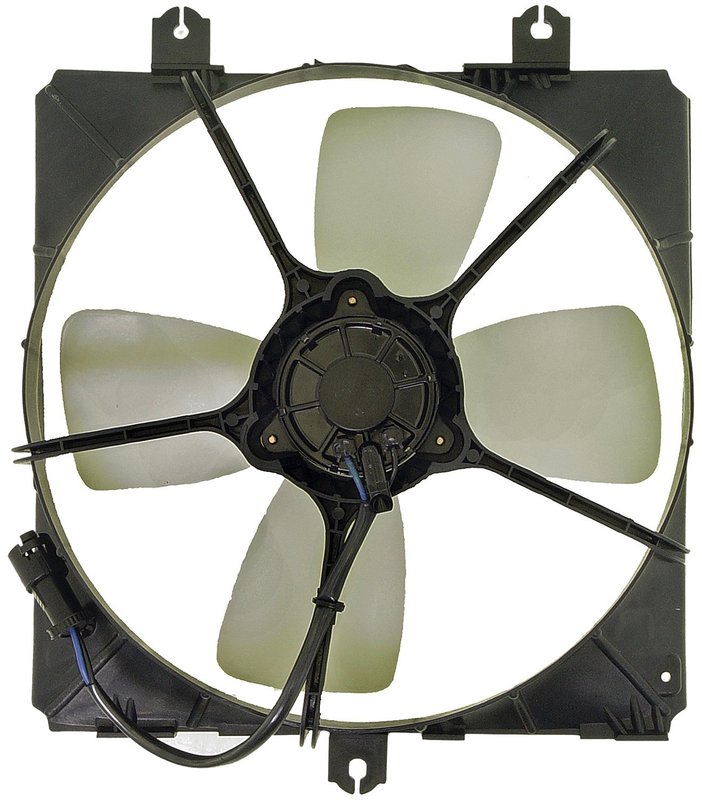

Dorman 620-514 A/C Condenser Fan Assembly

Overview of Dorman 620-514 A/C Condenser Fan Assembly

The Dorman 620-514 A/C condenser fan assembly is designed specifically for Toyota Camry models, providing reliable cooling performance. This assembly includes a durable plastic shroud and fan blade, powered by a brushed motor to ensure consistent airflow through the condenser.

• Brushed motor type for steady operation
• Includes plastic shroud for optimal airflow direction
• Plastic fan blade for lightweight and durability
• Two terminal connections and one male connector for easy installation
• Complete condenser fan assembly package

Detailed Product Description

The Dorman 620-514 condenser fan assembly is engineered to maintain proper cooling in the HVAC system of Toyota Camry vehicles. Featuring a brushed motor, this fan assembly delivers reliable and consistent performance under various driving conditions. The included plastic shroud helps channel airflow efficiently across the A/C condenser, improving heat dissipation. Both the shroud and fan blade are constructed from durable plastic materials, balancing strength and weight to reduce strain on the motor. The assembly is equipped with two terminal connections and a single male connector, simplifying the electrical hookup process during replacement.

Common Applications and Problem Resolution

• Replaces faulty or non-functioning condenser fan assemblies in Toyota Camry models
• Addresses overheating issues related to insufficient condenser cooling
• Resolves A/C system performance problems caused by damaged fan blades or shrouds
• Eliminates electrical connection failures with reliable terminal and connector design
• Restores proper airflow to maintain efficient air conditioning operation

Installation Notes and Tips

When installing the Dorman 620-514 condenser fan assembly, ensure the electrical connectors are securely attached to prevent intermittent operation. Verify that the plastic shroud is properly aligned to direct airflow through the condenser. It is recommended to inspect the surrounding HVAC components for damage or debris before installation. Use appropriate tools to avoid damaging the plastic components during removal and installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit and function. The 620-514 condenser fan assembly undergoes quality checks to ensure durability and performance. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product documentation for exact warranty terms.
