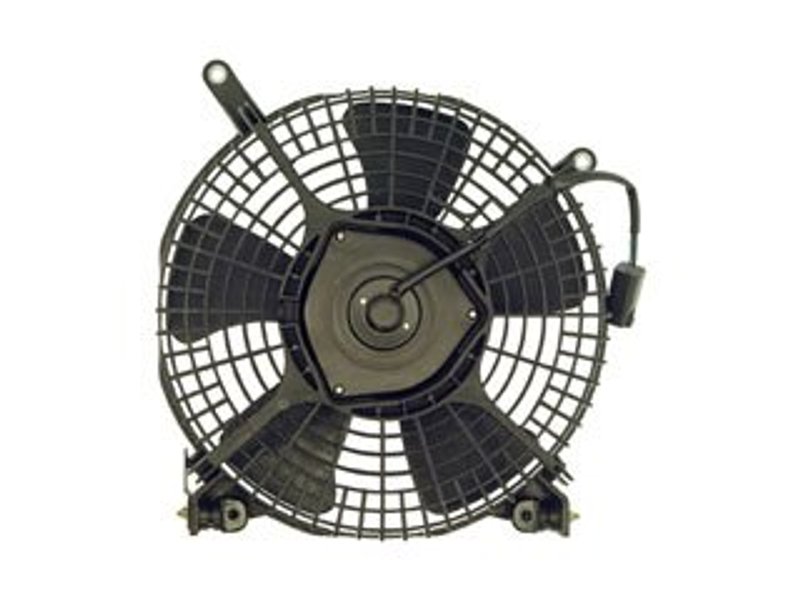

Dorman 620-564 A/C Condenser Fan Assembly

Overview of Dorman 620-564 A/C Condenser Fan Assembly

The Dorman 620-564 A/C condenser fan assembly is designed specifically for Toyota Tercel models, providing reliable cooling performance for your vehicle's HVAC system. This assembly includes a durable plastic shroud and fan blades, ensuring efficient airflow and heat dissipation.

• Compatible with Toyota Tercel models
• Brushed motor type for consistent operation
• Includes plastic shroud for optimal airflow management
• Plastic fan blades for lightweight and durability
• Two terminal connections with one male connector
• Complete condenser fan assembly package

Detailed Product Description

The Dorman 620-564 condenser fan assembly features a brushed motor that delivers steady and reliable performance to maintain proper cooling of the A/C condenser. The included plastic shroud helps direct airflow efficiently across the condenser, improving the overall HVAC system function. Both the shroud and fan blades are made from durable plastic materials, which reduce weight and resist corrosion. The assembly is equipped with two terminals and a single male connector, simplifying electrical connections during installation. This part is engineered to meet the specifications required for Toyota Tercel vehicles, ensuring compatibility and proper fit.

Common Applications and Issues Addressed

• Replaces faulty or worn condenser fan assemblies in Toyota Tercel models
• Resolves overheating issues related to insufficient condenser cooling
• Eliminates fan motor failure symptoms such as no airflow or intermittent operation
• Addresses damaged or cracked fan blades and shroud components
• Improves A/C system efficiency by restoring proper condenser cooling

Installation Notes and Tips

• Ensure vehicle is turned off and battery disconnected before installation
• Verify connector type and terminal count match existing assembly
• Handle plastic shroud and blades carefully to avoid damage during installation
• Check for proper alignment and secure mounting to prevent vibration
• Test fan operation after installation to confirm electrical connections

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 620-564 A/C condenser fan assembly undergoes quality inspections to ensure durability and reliable performance. Warranty coverage details can be obtained from the product documentation or authorized sources, providing confidence in the part's longevity and service life.
