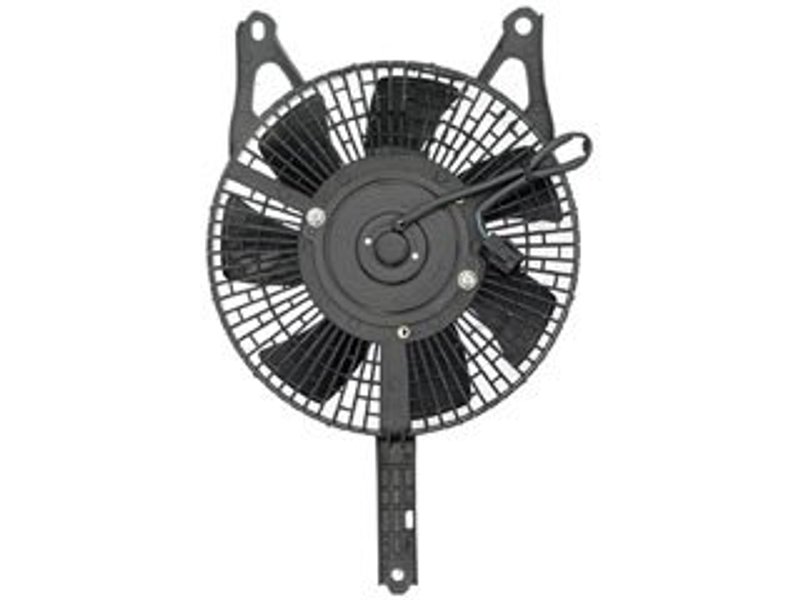

Dorman 620-741 A/C Condenser Fan Assembly

Overview of Dorman 620-741 A/C Condenser Fan Assembly

The Dorman 620-741 A/C condenser fan assembly is designed specifically for Mazda 323 and Protege models. This component plays a critical role in maintaining optimal air conditioning system performance by efficiently cooling the condenser.

• Brushed motor type for reliable operation
• Includes a stamped steel shroud for durability
• Plastic fan blades designed for effective airflow
• Two terminal connections with one male connector
• Complete condenser fan assembly package

Detailed Product Description

This Dorman A/C condenser fan assembly (part number 620-741) features a brushed motor that provides consistent power to the fan blades, ensuring proper airflow through the condenser. The stamped steel shroud protects the motor and fan while helping to direct airflow efficiently. The plastic blades are engineered to balance durability with lightweight performance, reducing strain on the motor. With two terminal connections and a single male connector, installation is straightforward and compatible with the electrical system of Mazda 323 and Protege vehicles.

Compatible Vehicles and Applications

This condenser fan assembly is compatible with the following Mazda models:

• Mazda 323
• Mazda Protege

It is designed to replace faulty or worn condenser fan assemblies that can cause issues such as overheating or reduced A/C efficiency.

Common Issues Addressed by This Part

• Overheating of the A/C condenser due to fan failure
• Reduced air conditioning performance in Mazda 323 and Protege
• Electrical connection problems with worn or damaged terminals
• Noise or vibration caused by damaged fan blades or motor
• Inadequate airflow resulting from missing or broken shroud components

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation
• Verify connector type and terminal count match the vehicle’s wiring harness
• Inspect the condenser and surrounding components for damage before installation
• Secure the stamped steel shroud properly to avoid airflow leaks
• Test the fan operation after installation to confirm proper function

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards. The 620-741 condenser fan assembly undergoes quality checks to ensure durability and reliable performance. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor.
