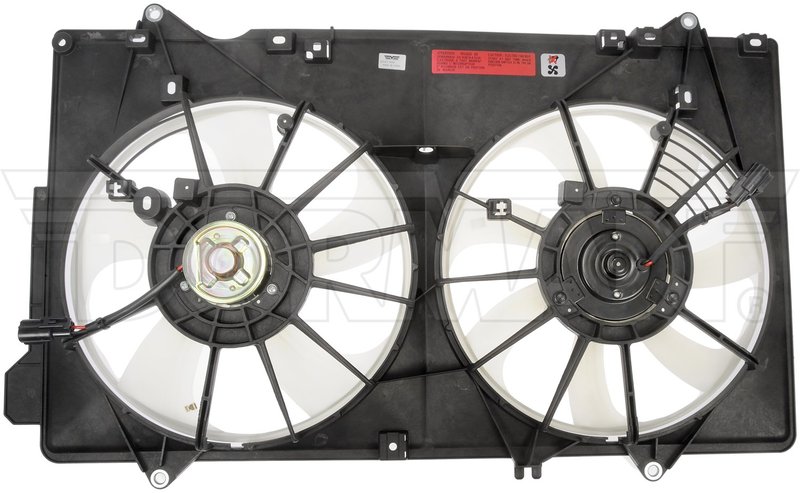

Dorman 620-814 Engine Cooling Fan Assembly
| Brand | Dorman 620-814 |
|---|---|
| Blade Material | Plastic |
| Blade Type | Forward Align Fin |
| Connector Gender | Male |
| Diameter | 330 mm; 330 mm |
| Electrical Or Mechanical | Electrical |
| Fan 1 Blade Quantity | 5 |
| Fan 1 Diameter | 330 |
| Fan 2 Blade Quantity | 7 |
| Fan 2 Diameter | 330 |
| Fan Quantity | 2 |
| Fan Rotation | Counterclockwise |
| Flat Side On Shaft | Yes |
| Grade Type | Regular |
| Motor Type | Brushed |
| Package Contents | Radiator Fan Assembly |
| Shaft Diameter | 5 |
| Shroud Color | Black |
| Shroud Included | Yes |
| Shroud Material | Plastic |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Voltage | 12 |
| Fits | Mazda · 7 vehicles |
OE-style replacement. Precision-engineered to match stock fan fit and performance.
Dual-fan assembly. Two 330 mm fans deliver strong cooling airflow.
Shrouded design. Plastic shroud helps channel air efficiently through the assembly.
Cross-references TYC 623010, CF21031 and FA70945 for the same application. See all 4.
Engine Cooling Fan Assembly for Mazda CX-5
This Dorman engine cooling fan assembly is built for specific 2013-2016 Mazda CX-5 applications and is engineered to match the fit and performance of the original radiator fan assembly. It uses a 12-volt brushed motor, a black plastic shroud, and dual plastic fans to support consistent engine cooling.
Key Features
- Direct replacement engine cooling fan assembly for select Mazda CX-5 models
- 12-volt electrical design with brushed motor
- Plastic shroud in black finish for OE-style packaging and fit
- Dual fan design with 330 mm fan diameters
- Counterclockwise fan rotation
- 2-terminal, male connector and terminal configuration
- Forward align fin blade design for radiator airflow management
Detailed Description
Dorman 620-814 is an engine cooling fan assembly intended for 2013-2016 Mazda CX-5 vehicles. It is precision-engineered to match the stock radiator fan assembly, with a shroud included and electrical operation for direct cooling-system service. The assembly uses plastic fan blades and a plastic shroud, and the dual-fan layout is designed to mirror the original fitment and airflow characteristics of the factory unit. This part cross-references TYC 623010 for the same application.
For buyers searching for a 2013-2016 Mazda CX-5 radiator fan assembly, Mazda CX-5 cooling fan replacement, or Dorman 620-814 engine cooling fan assembly, this part provides a fitment-specific solution for the listed vehicle range.
What It Helps Address
- Overheating caused by a failing radiator fan assembly
- Weak or inconsistent electric fan operation
- Noisy fan motor operation from worn internal components
- Cooling performance loss after fan shroud or blade damage
- Electrical fan failure that affects radiator airflow
Installation Notes and Tips
Verify connector style, terminal count, and fan orientation before installation. Confirm the replacement matches the vehicle’s original 12-volt electrical setup and the listed Mazda CX-5 fitment. Inspect surrounding cooling-system components, wiring, and connectors for heat damage or corrosion before installing the new assembly. Dorman 620-814 is listed for 2013-2016 Mazda CX-5 applications only.
Quality Assurance
This Dorman cooling fan assembly is rigorously tested to help ensure it cools as effectively as the original part. It is built as a direct-fit replacement for the specified Mazda CX-5 applications and is backed by Dorman’s OE-style engineering approach.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Mazda | CX-5 | 2.5L | L4 | N/A | — |
| 2016 | Mazda | CX-5 | 2.0L | L4 | N/A | — |
| 2015 | Mazda | CX-5 | 2.5L | L4 | N/A | — |
| 2015 | Mazda | CX-5 | 2.0L | L4 | N/A | — |
| 2014 | Mazda | CX-5 | 2.5L | L4 | N/A | — |
| 2014 | Mazda | CX-5 | 2.0L | L4 | N/A | — |
| 2013 | Mazda | CX-5 | 2.0L | L4 | N/A | — |
