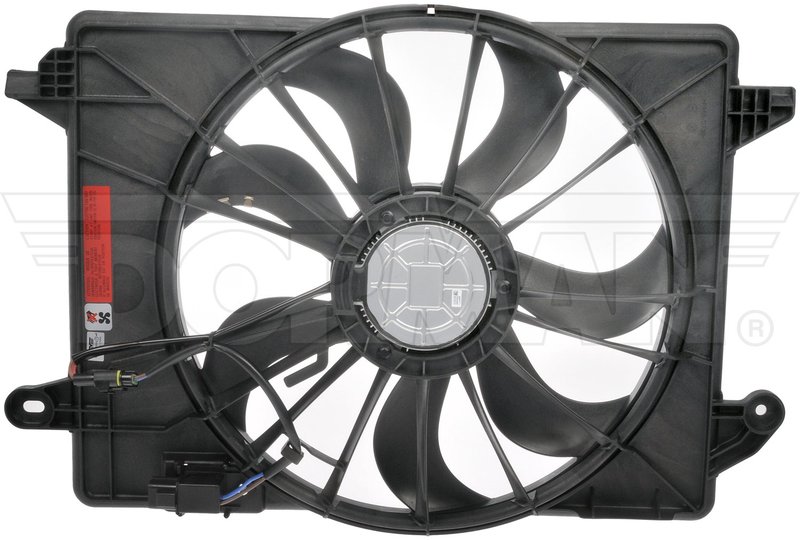

Dorman 621-526XD Engine Cooling Fan Assembly

Overview of Dorman Engine Cooling Fan Assembly 621-526XD

The Dorman 621-526XD engine cooling fan assembly is designed to maintain optimal engine temperature for Chrysler and Dodge vehicles, including the 300, Challenger, and Charger models. This electrical cooling fan assembly features a brushless motor and a durable plastic shroud to ensure reliable performance.

• Voltage: 13.6V for consistent electrical operation
• Brushless motor type for reduced maintenance and longer life
• Single fan with 7 forward align fin blades made of plastic
• Black plastic shroud included for proper airflow direction
• Counterclockwise fan rotation with a 460 mm diameter
• Three male terminals and one male connector for secure electrical connections
• 5 mm shaft diameter with flat side on shaft for proper fitment

Technical Details and Features

The Dorman 621-526XD engine cooling fan assembly is engineered with a brushless motor that operates at 13.6 volts, providing efficient and quiet cooling performance. The assembly includes a single 460 mm diameter fan featuring seven forward align fin blades made from durable plastic, designed to optimize airflow and engine cooling. The black plastic shroud is included to direct airflow effectively and protect the fan blades. This assembly rotates counterclockwise and is equipped with a 5 mm shaft diameter featuring a flat side on the shaft to ensure proper installation and secure fitment.

Compatible Vehicles and Applications

This engine cooling fan assembly is compatible with select Chrysler and Dodge vehicles, specifically designed for the Chrysler 300, Dodge Challenger, and Dodge Charger models. The part number 621-526XD ensures precise fitment and reliable operation within these vehicles' cooling systems.

Common Issues Addressed by This Cooling Fan Assembly

• Overheating due to faulty or worn cooling fan motor
• Inadequate airflow caused by damaged or broken fan blades
• Electrical failures related to connectors or terminals
• Cooling inefficiency from missing or damaged shroud
• Noise or vibration from worn motor components

Installation Notes and Tips

When installing the Dorman 621-526XD engine cooling fan assembly, ensure the electrical connections match the three male terminals and single male connector for proper wiring. Verify the flat side on the 5 mm shaft aligns correctly to secure the fan assembly. The included black plastic shroud should be positioned to optimize airflow and protect the fan blades. It is recommended to inspect the cooling system for any additional damage or wear during installation.

Quality Assurance and Warranty

Dorman engine cooling fan assemblies are manufactured to meet or exceed OEM specifications for fit, form, and function. The 621-526XD part number undergoes rigorous quality control to ensure durability and reliable performance in Chrysler 300, Dodge Challenger, and Charger vehicles. Please refer to Dorman's warranty policy for specific coverage details.
