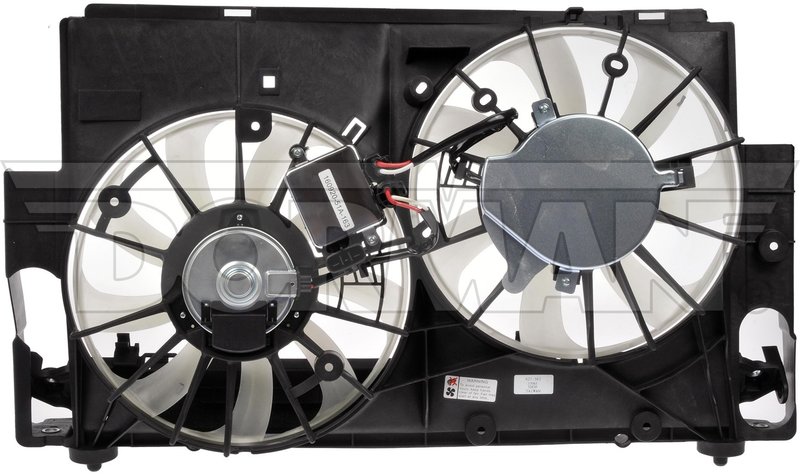

Dorman 621-563 Engine Cooling Fan Assembly

Reliable Engine Cooling Fan Assembly for Lexus NX300h and Toyota RAV4

The Dorman 621-563 engine cooling fan assembly is designed to maintain optimal engine temperature for Lexus NX300h and Toyota RAV4 models. Featuring a dual-fan setup with a durable plastic shroud, this assembly ensures efficient airflow and reliable cooling performance.

• Voltage: 13.6V electrical motor
• Brushed motor type for consistent operation
• Two fans with 340 mm diameter each
• Plastic forward align fin blades (9 blades on fan 1, 7 blades on fan 2)
• Black plastic shroud included for secure mounting
• Counterclockwise and clockwise fan rotation
• Three male terminals with one male connector
• Shaft diameter of 5.25 mm

Detailed Product Description

This Dorman engine cooling fan assembly (part number 621-563) is engineered for use in Lexus NX300h and Toyota RAV4 vehicles, providing reliable engine cooling through its dual 340 mm diameter fans. The assembly includes a black plastic shroud that helps direct airflow efficiently across the radiator. The fans feature forward align fin blades made of plastic, with 9 blades on the first fan and 7 on the second, designed to optimize air movement. Powered by a 13.6-volt brushed motor, the assembly operates electrically with both clockwise and counterclockwise rotation to meet the cooling demands of your vehicle. The three-terminal male connector ensures secure electrical connections, while the 5.25 mm shaft diameter supports stable fan operation.

Common Applications and Issues Addressed

• Prevents engine overheating during high-temperature conditions
• Replaces faulty or worn cooling fan assemblies in Lexus NX300h and Toyota RAV4
• Restores proper airflow to radiator for improved engine performance
• Eliminates fan motor noise or failure due to worn brushes
• Resolves electrical connection issues with secure male terminals and connector

Installation Notes and Tips

• Ensure vehicle compatibility with Lexus NX300h and Toyota RAV4 models before installation
• Disconnect battery before removing the old fan assembly to avoid electrical hazards
• Verify the orientation of the fan rotation (clockwise/counterclockwise) matches the original assembly
• Check the condition of the electrical connectors and terminals for corrosion or damage
• Securely mount the plastic shroud to prevent vibration and noise during operation

Quality Assurance and Warranty

Dorman 621-563 engine cooling fan assembly is manufactured to meet OEM specifications for fit and function. The product undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
