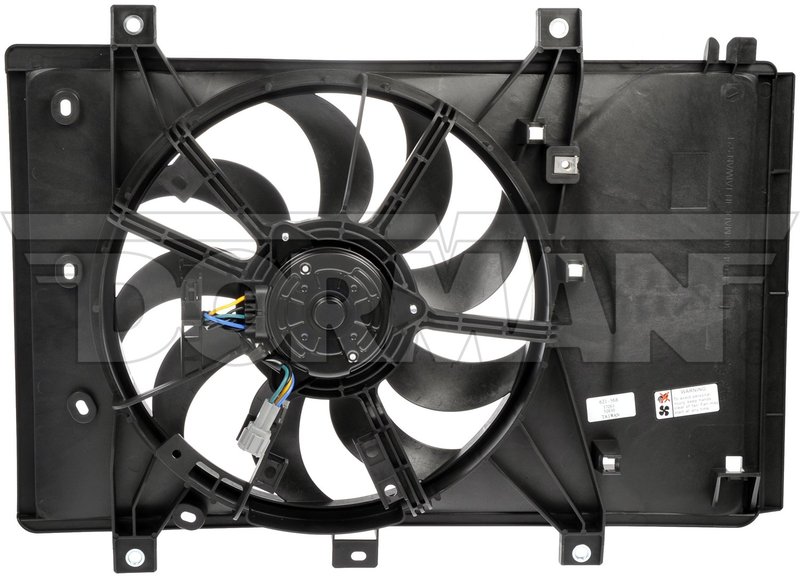

Dorman 621-568 Engine Cooling Fan Assembly

Overview of Dorman Engine Cooling Fan Assembly 621-568

The Dorman 621-568 engine cooling fan assembly is designed specifically for select Toyota and Scion models, including the Yaris, Yaris iA, Yaris R, and Scion iA. This mechanical cooling fan assembly helps maintain optimal engine temperature by efficiently dissipating heat through its durable plastic blades and integrated shroud.

• 12-volt brushed motor for reliable operation
• Single fan with 9 forward align fin blades
• Black plastic shroud included for proper airflow management
• Counterclockwise fan rotation with a 380 mm diameter
• Four male terminals and one male connector for secure electrical connections
• 5 mm shaft diameter designed for precise fitment

Detailed Product Description

The Dorman 621-568 engine cooling fan assembly features a 12V brushed motor that drives a single 380 mm diameter fan with nine forward align fin blades made from durable plastic. The fan rotates counterclockwise to optimize airflow through the radiator, helping to regulate engine temperature effectively. The assembly includes a black plastic shroud that directs airflow and protects the fan blades, ensuring consistent cooling performance. Electrical connections are facilitated by four male terminals and a male connector, providing a secure and reliable interface with the vehicle's wiring harness. This mechanical fan assembly is engineered to meet the specifications required for Toyota Yaris, Yaris iA, Yaris R, and Scion iA models, ensuring compatibility and proper function.

Compatible Vehicles and Applications

• Toyota Yaris (various model years)
• Toyota Yaris iA
• Toyota Yaris R
• Scion iA

This cooling fan assembly is intended for use in engine cooling systems to prevent overheating and maintain efficient engine operation. It is suitable for replacing worn or damaged cooling fans in the listed vehicles.

Common Issues Addressed by This Cooling Fan Assembly

• Engine overheating due to faulty or non-functioning cooling fan
• Reduced airflow caused by damaged or broken fan blades
• Electrical connection failures affecting fan motor operation
• Cooling inefficiency from missing or damaged fan shroud
• Noise or vibration from worn motor components

Installation Notes and Tips

Installation of the Dorman 621-568 engine cooling fan assembly requires basic mechanical skills and tools. Ensure the vehicle is turned off and cooled down before beginning. Disconnect the battery to prevent electrical shorts. Remove the old fan assembly carefully, noting the orientation and connector placement. Install the new fan assembly with the 5 mm shaft properly seated and secure the shroud to maintain airflow direction. Reconnect the four male terminals and the male connector firmly to ensure proper electrical contact. Test the fan operation before reassembling other components.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 621-568 engine cooling fan assembly undergoes quality checks to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Refer to the product packaging or Dorman’s official documentation for exact warranty terms.
