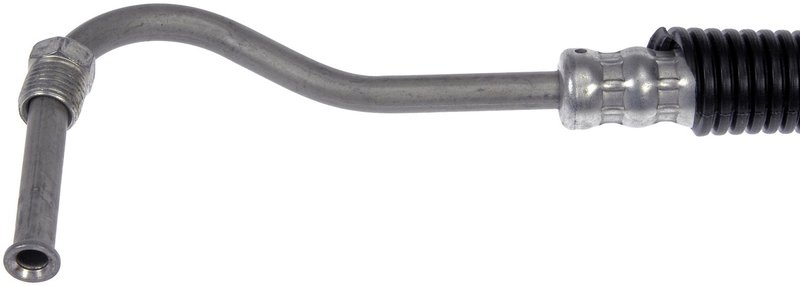

Dorman 624-071 Automatic Transmission Oil Cooler Hose Assembly - Auxiliary Cooler to Radiator (Passenger Side)

Automatic Transmission Oil Cooler Hose Assembly

Dorman 624-071 is a replacement automatic transmission oil cooler hose assembly for vehicles that route transmission fluid between the transmission and the transmission oil cooler. Built with metal and rubber components, it provides a direct fluid path for applications that need a rigid, leak-resistant transmission line.

Compatible With 1993-1995 Chevrolet C2500, Auxiliary Cooler to Radiator (Passenger Side), and other listed Chevrolet and GMC heavy-duty truck applications. This part number, 624-071, is also a direct reference for service matching on the same application.

Key Features

• Metal and rubber construction for a durable transmission fluid line
• Natural finish hose with an 18-inch length
• Male threads on end 1 and male quick disconnect on end 2
• Maximum working pressure of 100 psi
• Operating temperature range from -40°F to 329°F
• Rigid, non-flexible design for fixed routing

Detailed Description

This automatic transmission oil cooler hose assembly is built to move critical transmission fluid between the transmission and cooler circuit while maintaining a secure seal. The metal and rubber construction supports a stable, leak-resistant connection in applications where the line runs from the auxiliary cooler to the radiator on the passenger side. Dorman 624-071 is listed for 1993-1995 Chevrolet C2500, C2500 Suburban, C3500, K2500, K2500 Suburban, and K3500, plus 1993-1995 GMC C2500, C2500 Suburban, C3500, K2500, K2500 Suburban, and K3500, along with 1995 Chevrolet C35.

This part cross-references 5801151 and 15980574 for the same application. Use 624-071 when replacing a worn, leaking, or damaged transmission cooler line on the specified Chevrolet and GMC trucks.

Common Problems This Part Can Address

• Transmission fluid leaks at the cooler line connection
• Cracked, corroded, or damaged original oil cooler hose assembly
• Restricted fluid transfer between the transmission and cooler
• Improper sealing at the male thread or quick-disconnect ends
• Heat-related deterioration in the transmission line routing

Installation Notes and Tips

Verify the vehicle’s year, make, model, and cooler-line routing before installation. This assembly uses a male-threaded end and a male quick-disconnect end, so confirm the connection style on the vehicle side before ordering. The line is not flexible, so align the routing carefully to match the original path from the auxiliary cooler to the radiator on the passenger side.

Quality Assurance

Dorman replacement parts are built to match the service needs of the original application using materials selected for fluid handling and temperature resistance. For this part, the construction is specified for transmission oil cooler service with a 100 psi maximum working pressure and a temperature range from -40°F to 329°F.
