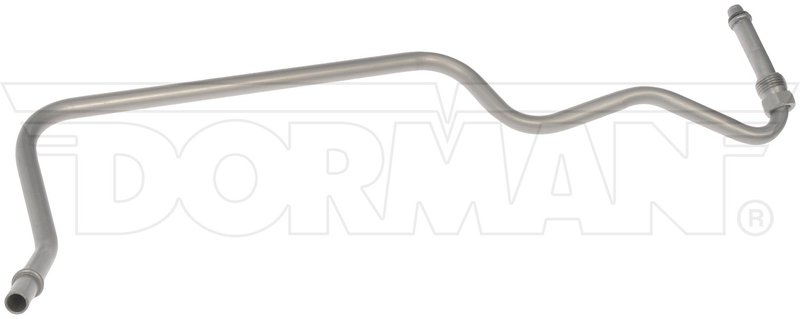

Dorman 624-272 Automatic Transmission Oil Cooler Hose Assembly - Outlet (Upper)
| Brand | Dorman 624-272 |
|---|---|
| Position | Outlet (Upper) |
| Contains Spring | No |
| End 1 Inside Diameter | 0.25 |
| End 1 Type | None |
| End 2 Type | Male Threads |
| Flexible | No |
| Gasket or Seal Included | No |
| Hose Color | Black |
| Hose Color | Coated |
| Hose Material | Metal |
| Hose Shape | Molded Assembly |
| Length | 16 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F. |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F. |
| Package Contents | 1 Transmission Line |
| Fits | Dodge · 22 vehicles |
Leak-free delivery. Metal and rubber construction keeps critical fluid moving reliably.
Molded assembly. A formed hose design for a clean, direct replacement.
Transmission cooler hose. Built to carry fluid between the transmission and cooler.
Cross-references 5015414AA and 5801419 for the same application. See all 2.
Automatic Transmission Oil Cooler Hose Assembly
Dorman 624-272 is a replacement automatic transmission oil cooler hose assembly for vehicles that route transmission fluid between the transmission and the oil cooler. Built with metal and rubber components, it supports leak-resistant fluid transfer in the upper outlet line location.
Compatible With 2000-2004 Dodge Dakota and 2000-2003 Dodge Durango, this upper outlet transmission line is a direct-fit service part for vehicles without an auxiliary oil cooler. The molded assembly design helps match the original routing and connection style for the application.
Key Features
- Replacement automatic transmission oil cooler hose assembly
- Metal hose construction with coated black finish
- Molded assembly design for the upper outlet line
- Male-thread end connection
- Rated for 100 psi maximum working pressure
- Operating temperature range: -40°F to 329°F
- Fits Dodge Dakota and Dodge Durango applications without an auxiliary oil cooler
Detailed Description
Dorman 624-272 is engineered as a transmission cooler line replacement for the upper outlet position. It uses quality metal and rubber components to carry automatic transmission fluid between the transmission and the transmission oil cooler while maintaining a secure, leak-resistant connection. For Dodge Dakota and Dodge Durango owners, this part number 624-272 provides a service solution for the specified factory routing on vehicles without an auxiliary oil cooler.
This part cross-references 5015414AA and 5801419 for the same application.
Common Problems It Can Address
- Transmission fluid leaking from a damaged cooler hose or line
- Cracked, corroded, or worn original transmission cooler tubing
- Improper fluid transfer between the transmission and cooler
- Loss of line integrity at the upper outlet connection
- Service replacement for a failed Dodge Dakota or Dodge Durango transmission line
Installation Notes and Tips
Verify vehicle fitment by year, model, and the upper outlet position before installation. This assembly uses a male-thread end on one side and does not include a gasket or seal. Confirm the vehicle is equipped without an auxiliary oil cooler, and inspect mating surfaces and adjacent cooler components for wear or contamination before installing the new line.
Quality Assurance
Dorman replacement parts are built to match the application-specific requirements of the original line routing and fluid-transfer function. Part number 624-272 is constructed for the temperature and pressure demands of automatic transmission cooler service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Dodge | Dakota | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2003 | Dodge | Dakota | 3.9L | V6 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2003 | Dodge | Dakota | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2003 | Dodge | Dakota | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2003 | Dodge | Durango | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2003 | Dodge | Durango | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2002 | Dodge | Dakota | 3.9L | V6 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2002 | Dodge | Dakota | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2002 | Dodge | Dakota | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2002 | Dodge | Durango | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2002 | Dodge | Durango | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2001 | Dodge | Dakota | 3.9L | V6 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2001 | Dodge | Dakota | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2001 | Dodge | Dakota | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2001 | Dodge | Durango | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2001 | Dodge | Durango | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Dakota | 3.9L | V6 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Dakota | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Dakota | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Durango | 5.2L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Durango | 5.9L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
| 2000 | Dodge | Durango | 4.7L | V8 | Outlet (Upper) | Fits vehicles without Auxiliary Oil Cooler. |
