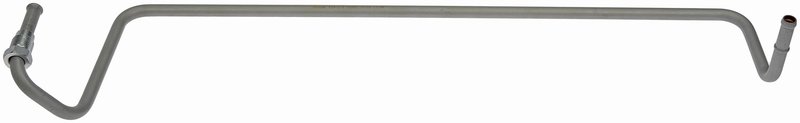

Dorman 624-276 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet
| Brand | Dorman 624-276 |
|---|---|
| Position | Inlet and Outlet |
| Contains Spring | No |
| End 1 Inside Diameter | 0.3 |
| End 1 Type | Male Threads |
| End 2 Type | Quick Disconnect |
| Flexible | No |
| Gasket or Seal Included | No |
| Hose Color | Natural |
| Hose Material | Metal |
| Hose Shape | Molded Assembly |
| Length | 22.5 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F. |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F. |
| Package Contents | 1 Transmission Line |
| Fits | Ford · 18 vehicles |
Metal and rubber construction. Delivers critical fluid with leak-free performance.
Molded assembly. Provides a precise hose shape for dependable routing.
Transmission oil cooler hose. Connects the transmission to the cooler for fluid transfer.
Cross-references Sunsong 5801374 and YC3Z7R081AA for the same application. See all 2.
Transmission Cooler Hose Assembly
Dorman 624-276 is a replacement automatic transmission oil cooler hose assembly for select Ford trucks and SUVs. It routes transmission fluid between the transmission and the cooler with metal and rubber construction for a secure, leak-resistant connection.
- Replacement automatic transmission oil cooler hose assembly
- Metal hose construction with molded assembly shape
- Natural finish
- Male threads on end 1 and quick disconnect on end 2
- 22.5 in. length
- Maximum working pressure: 100 psi
- Operating temperature range: -40°F to 329°F
- Direct replacement for select Ford Excursion, F-250 Super Duty, and F-350 Super Duty applications
Detailed Product Overview
This Dorman transmission cooler hose assembly is built to restore fluid transfer between the radiator-side cooler circuit and the transmission oil cooler. The molded metal assembly is made to handle hot automatic transmission fluid while maintaining a secure seal at the connection points. Part number 624-276 is a practical replacement for vehicles that need a line from the radiator to the cooler inlet line, including select 2000-2005 Ford Excursion, 2000-2004 Ford F-250 Super Duty, and 2000-2004 Ford F-350 Super Duty models.
This part cross-references Sunsong 5801374 and OE number YC3Z7R081AA for the same application. If you are searching for a Ford Excursion transmission cooler hose, Ford F-250 Super Duty transmission line, or Ford F-350 Super Duty cooler inlet line replacement, 624-276 matches those fitment needs directly.
What It Helps Address
- Transmission fluid leaks at the cooler line assembly
- Cracked, corroded, or damaged factory cooler hose routing
- Restricted fluid transfer between the transmission and cooler
- Hard-to-seal connections at the radiator-to-cooler inlet line
- Replacement needs on aging Ford Excursion, F-250 Super Duty, and F-350 Super Duty trucks
Installation Notes
Verify the end styles before installation: male threads on one end and a quick disconnect on the other. Confirm the line routing, length, and vehicle build date, especially for 2000 Ford Excursion, F-250 Super Duty, and F-350 Super Duty models built from 2/06/00. Inspect mating surfaces and replace any worn seals or retaining components as needed, since no gasket or seal is included.
Quality Assurance
Dorman replacement parts are engineered to match the original line function and material requirements for the application. This assembly is built from quality metal and rubber components to support leak-free transmission fluid delivery under normal operating conditions.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Ford | Excursion | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2004 | Ford | Excursion | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2004 | Ford | F-250 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2004 | Ford | F-350 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2003 | Ford | Excursion | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2003 | Ford | F-250 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2003 | Ford | F-350 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2002 | Ford | Excursion | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2002 | Ford | F-250 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2002 | Ford | F-350 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2001 | Ford | Excursion | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2001 | Ford | F-250 Super Duty | — | — | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2001 | Ford | F-350 Super Duty | 7.3L | V8 | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2001 | Ford | F-350 Super Duty | 6.8L | V10 | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2001 | Ford | F-350 Super Duty | 5.4L | V8 | Inlet and Outlet | Line from Radiator to Cooler Inlet Line |
| 2000 | Ford | Excursion | — | — | Inlet and Outlet | From 2/06/00; Line from Radiator to Cooler Inlet Line |
| 2000 | Ford | F-250 Super Duty | — | — | Inlet and Outlet | From 2/06/00; Line from Radiator to Cooler Inlet Line |
| 2000 | Ford | F-350 Super Duty | — | — | Inlet and Outlet | From 2/06/00; Line from Radiator to Cooler Inlet Line |
