Dorman 624-282 Automatic Transmission Oil Cooler Hose Assembly
OE Quality 60-Day Returns
Dorman

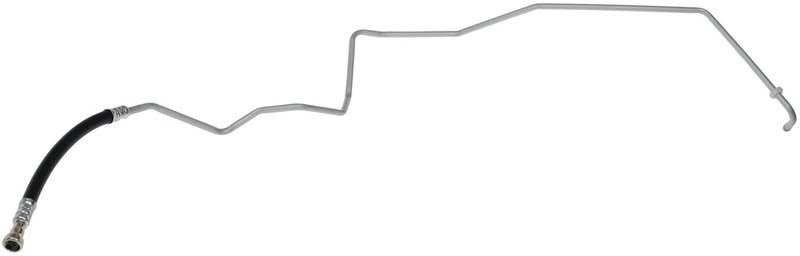

Dorman 624-282 Automatic Transmission Oil Cooler Hose Assembly

Brand Dorman 624-282
Contains Spring No
End 1 Inside Diameter 0.25
End 1 Type Quick Connect
End 2 Type Male Quick Disconnect
Flexible No
Gasket or Seal Included No
Hose Color Natural
Hose Material Metal
Hose Material Rubber
Hose Shape Molded Assembly
Length 45
Maximum Operating Temperature (┬░F) 329 Deg. F.
Maximum Working Pressure 100
Minimum Operating Temperature (┬░F) -40 Deg. F.
Package Contents 1 Transmission Line
Fits Dodge · 14 vehicles

Leak-free delivery. Metal and rubber construction keeps critical fluid moving securely.

Molded assembly. Shaped for a precise, ready-to-install hose replacement.

Quick-connect ends. Simplifies connection at both ends for faster service.

Cross-references 5801375 and 52028924AG for the same application. See all 2.

$120.33Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $120.33
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Oil Cooler Hose Assembly options

Automatic Transmission Oil Cooler Hose Assembly

Dorman 624-282 is a replacement automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit pressure line for select Dodge Ram trucks, including Ram 1500, Ram 2500, and Ram 3500 applications.

  • Fits 2005-2008 Dodge Ram 1500, pressure line
  • Fits 2005-2009 Dodge Ram 2500, pressure line
  • Fits 2005-2009 Dodge Ram 3500, pressure line
  • Quick connect end and male quick disconnect end for OE-style routing
  • Molded assembly with natural hose color
  • Rated for 100 psi maximum working pressure
  • Operating temperature range: -40°F to 329°F
  • Hose length: 45 in.

Built For Transmission Fluid Routing

This Dorman transmission line is made to move automatic transmission fluid from the transmission to the cooler while maintaining a secure seal at the connection points. The metal and rubber construction supports a molded hose shape, and the 0.25 in. inside diameter matches the listed application requirements. Dorman 624-282 cross-references OE-style part numbers 5801375 and 52028924AG for the same application.

Common Problems It Can Address

  • Leaking transmission cooler hose connections
  • Cracked or deteriorated original cooler line material
  • Restricted fluid flow between the transmission and cooler
  • Damaged pressure line on Dodge Ram 1500, Ram 2500, or Ram 3500 trucks
  • Improper fit from a worn or bent transmission hose assembly

Installation Notes And Tips

Verify the end styles, length, and pressure-line routing before installation. This assembly does not include a gasket or seal, so reuse or replacement of sealing components should be confirmed during service. The hose is not flexible and is shaped as a molded assembly, so correct alignment with the factory routing is important on 2005-2009 Dodge Ram 2500 and Ram 3500 models and 2005-2008 Dodge Ram 1500 models.

Quality Assurance

Dorman replacement parts are engineered to match the listed application and material requirements for transmission cooling service. Part number 624-282 is built for the specified temperature and pressure range to support reliable fluid transfer in compatible Dodge Ram truck applications.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2009DodgeRam 25005.7LV8GASN/APressure Line
2009DodgeRam 35005.7LV8GASN/APressure Line
2008DodgeRam 15005.7LV8—N/APressure Line
2008DodgeRam 25005.7LV8GASN/APressure Line
2008DodgeRam 35005.7LV8GASN/APressure Line
2007DodgeRam 15005.7LV8—N/APressure Line
2007DodgeRam 25005.7LV8GASN/APressure Line
2007DodgeRam 35005.7LV8GASN/APressure Line
2006DodgeRam 15005.7LV8—N/APressure Line
2006DodgeRam 25005.7LV8GASN/APressure Line
2006DodgeRam 35005.7LV8GASN/APressure Line
2005DodgeRam 15005.7LV8—N/APressure Line
2005DodgeRam 25005.7LV8GASN/APressure Line
2005DodgeRam 35005.7LV8GASN/APressure Line
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
580137552028924AG
