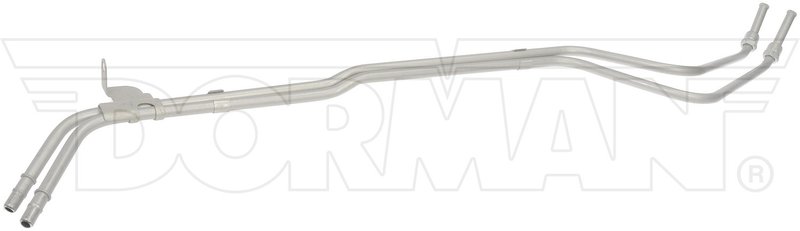

Dorman 624-295 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet
| Brand | Dorman 624-295 |
|---|---|
| Position | Inlet and Outlet |
| Contains Spring | No |
| End 1 Inside Diameter | 7.5 |
| End 1 Type | Male Threads |
| End 2 Type | Male Quick Disconnect |
| Flexible | No |
| Gasket or Seal Included | No |
| Hose Color | Black |
| Hose Color | Silver |
| Hose Material | Metal |
| Hose Shape | Straight |
| Length | 30.43 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F. |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F. |
| Package Contents | 1 Transmission Line |
| Fits | Ford and Mercury · 3 vehicles |
Leak-free delivery. Metal and rubber construction moves critical fluid reliably.
Straight hose design. Simplifies routing for a clean, direct connection.
Transmission line assembly. Replacement hose for fluid transfer between components.
Cross-references 1L2Z7R081BD for the same application. See all 1.
Automatic Transmission Cooler Hose Assembly
Dorman 624-295 is a replacement automatic transmission oil cooler hose assembly for select Ford and Mercury applications. It routes transmission fluid between the transmission and the transmission oil cooler using metal and rubber construction for a secure, leak-resistant connection.
- Direct replacement automatic transmission oil cooler hose assembly
- Metal hose construction with black and silver finish
- Straight hose shape for factory-style routing
- Male threads at one end and male quick disconnect at the other
- Rated for 100 psi maximum working pressure
- Operating range from -40°F to 329°F
- Fits inlet and outlet at the transmission on listed vehicles
Built for Fluid Transfer
This Dorman transmission line is made to restore the fluid path between the transmission and cooler on 2002-2005 Ford Explorer, 2005 Ford Explorer Sport Trac, 2004-2005 Mercury Mountaineer, and 2003 Ford Explorer Sport applications. Part number 624-295 is a practical OE-style replacement when the original cooler hose is damaged, corroded, or leaking. This part cross-references Ford 1L2Z7R081BD for the same application.
Common Problems It Can Address
- Transmission fluid leaks at the cooler line connection
- Corrosion or damage to the original metal hose assembly
- Restricted fluid transfer between the transmission and cooler
- Failed quick-disconnect or threaded line connection at the transmission
- Heat-related deterioration of the original hose assembly
Installation Notes and Tips
Verify the end styles before installation: male threads on one end and a male quick disconnect on the other. This hose is straight, non-flexible, and does not include a gasket or seal, so inspect the mating surfaces and replace any worn sealing components as needed. Confirm routing at the transmission and cooler before tightening the connections.
Quality Assurance
Dorman replacement parts are built to match the function of the original transmission cooler line using quality metal and rubber components for dependable fluid delivery. Part number 624-295 is engineered for the listed Ford Explorer, Ford Explorer Sport Trac, Mercury Mountaineer, and Ford Explorer Sport applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Ford | Explorer | 4.0L | V6 | Inlet and Outlet | At Transmission |
| 2005 | Ford | Explorer Sport Trac | 4.0L | V6 | Inlet and Outlet | At Transmission |
| 2005 | Mercury | Mountaineer | 4.0L | V6 | Inlet and Outlet | At Transmission |
