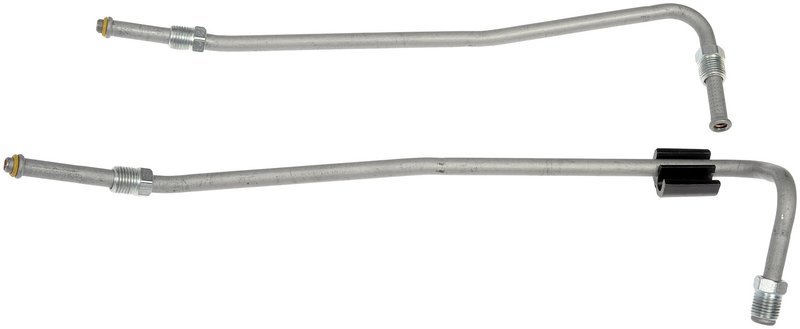

Dorman 624-511 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet
| Brand | Dorman 624-511 |
|---|---|
| Position | Inlet and Outlet |
| Contains Spring | No |
| End 1 Inside Diameter | 6.4 |
| End 1 Type | Male Threads |
| End 2 Type | Male Quick Disconnect |
| Flexible | Yes |
| Gasket or Seal Included | Yes |
| Hose Color | Black |
| Hose Color | Silver |
| Hose Material | Rubber |
| Hose Shape | Straight |
| Length | 53 |
| Maximum Operating Temperature (┬░F) | 302 Deg. F |
| Maximum Working Pressure | 1000 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F |
| Package Contents | 4 Transmission Lines; 6 Threaded End Connectors; 4 O-rings; 3 brackets; 1 Retaining clip |
| Fits | Ford · 2 vehicles |
Leak-free delivery. Metal and rubber construction helps move critical fluid reliably.
Flexible rubber hose. Straight design with a quick-disconnect end for easier routing.
Seal included. Comes with a gasket or seal for a tighter connection.
Cross-references 4L1Z7R081AA for the same application. See all 1.
Dorman 624-511 Transmission Oil Cooler Hose
Dorman 624-511 is an automatic transmission oil cooler hose assembly for 2004-2005 Ford Expedition inlet and outlet applications. It is built with metal and rubber components to maintain a sealed fluid path between the transmission and the transmission oil cooler.
Key Features
- Automatic transmission oil cooler hose assembly
- Constructed with rubber and metal components
- Straight hose design with flexible routing
- Male threads at end 1 and male quick disconnect at end 2
- Includes gasket or seal for the connection points
- Rated for 1000 maximum working pressure
- Operating temperature range: -40°F to 302°F
- Compatible with 2004-2005 Ford Expedition inlet and outlet locations
Detailed Description
This Dorman transmission cooler hose assembly is engineered for fluid transfer between the transmission and the cooler on the Ford Expedition. The 53-inch hose uses a rubber construction with black and silver sections, and the straight, flexible layout supports routing in the original vehicle path. Dorman 624-511 cross-references Ford 4L1Z7R081AA for the same application.
Fits 2004-2005 Ford Expedition, inlet and outlet. Use this part number when replacing a leaking, damaged, or disconnected transmission cooler line on the Expedition. The assembly is specified with male threads on one end, a male quick disconnect on the other, and included seals to support a secure connection.
What It Helps Address
- Transmission fluid leaks at the cooler line assembly
- Cracked or deteriorated rubber hose sections
- Damaged quick-disconnect or threaded line connections
- Restricted fluid transfer between the transmission and cooler
- Corrosion or wear in the original cooler hose assembly
Installation Notes and Tips
Verify the vehicle is a 2004-2005 Ford Expedition with inlet and outlet cooler line routing before ordering. Inspect the mating fittings, brackets, and retaining points during replacement, and confirm the hose follows the original path without kinks or contact with hot or moving components. The package contents include threaded end connectors, O-rings, brackets, and a retaining clip as listed by the manufacturer.
Quality Assurance
Dorman manufactures this replacement hose assembly to restore a secure transmission fluid connection using quality metal and rubber construction. It is specified for leak-resistant fluid delivery between the transmission and the transmission oil cooler on the listed Ford Expedition applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Ford | Expedition | Inlet and Outlet | — |
| 2004 | Ford | Expedition | Inlet and Outlet | — |
