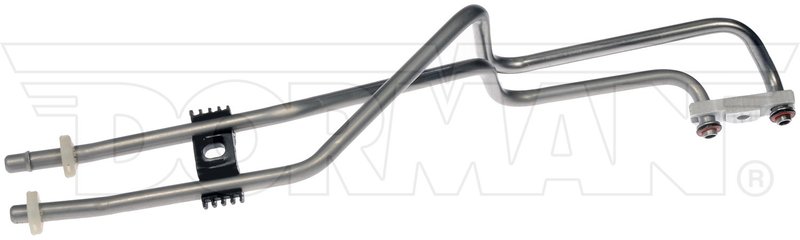

Dorman 624-514 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet
| Brand | Dorman 624-514 |
|---|---|
| Position | Inlet and Outlet |
| Contains Spring | No |
| End 1 Inside Diameter | 0.174 |
| End 1 Type | None |
| End 2 Type | None |
| Flexible | No |
| Gasket or Seal Included | Yes |
| Hose Color | Black |
| Hose Color | Silver |
| Hose Material | Metal |
| Hose Shape | Molded Assembly |
| Length | 17 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F. |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F. |
| Package Contents | 1 Transmission Line |
| Fits | Jeep · 6 vehicles |
Replacement hose assembly. Constructed for leak-free fluid delivery between the transmission and cooler.
Metal and rubber build. Combines durable materials for dependable fluid transfer.
Molded assembly. Shaped for a precise, ready-to-install fit.
Cross-references Sunsong 5801476 and 68033238AA for the same application. See all 2.
Automatic Transmission Oil Cooler Hose for Jeep Liberty
Dorman 624-514 is a replacement automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit service part for 2008-2013 Jeep Liberty inlet and outlet applications at the oil cooler.
Key Features
- Fits 2008-2013 Jeep Liberty, inlet and outlet at the oil cooler
- Constructed from metal and rubber materials for a molded assembly design
- Includes a gasket or seal for the connection point
- Rated for 100 maximum working pressure
- Operates from -40 Deg. F. to 329 Deg. F.
- Black and silver hose finish
- Part number 624-514 for service identification
Detailed Description
This Dorman transmission cooler hose assembly is made to replace the original line that carries automatic transmission fluid between the transmission and the cooler. The molded metal construction helps maintain the correct routing and connection geometry, while the included seal supports leak-resistant operation at the oil cooler connection. For Jeep Liberty models from 2008 through 2013, 624-514 provides a direct replacement for inlet and outlet use at the oil cooler.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems This Part Can Address
- Transmission fluid seepage at the cooler line connection
- Cracked, corroded, or damaged original cooler hose assembly
- Restricted fluid transfer between the transmission and cooler
- Improper line routing caused by a bent or failed factory hose
- Service replacement needs on a 2008-2013 Jeep Liberty transmission cooler line
Installation Notes and Tips
Verify the inlet and outlet routing at the oil cooler before installation. Inspect the mating surfaces and replace any worn sealing surfaces as needed. Confirm the line is seated correctly and check for leaks after refilling the transmission system. Use the vehicle application details to match this hose assembly to the correct Jeep Liberty configuration.
Quality Assurance
Dorman replacement parts are built to match the function of the original component and support dependable service in transmission cooling applications. Part number 624-514 is engineered as a direct replacement for the specified Jeep Liberty fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
| 2012 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
| 2011 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
| 2010 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
| 2009 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
| 2008 | Jeep | Liberty | Inlet and Outlet | At Oil Cooler |
