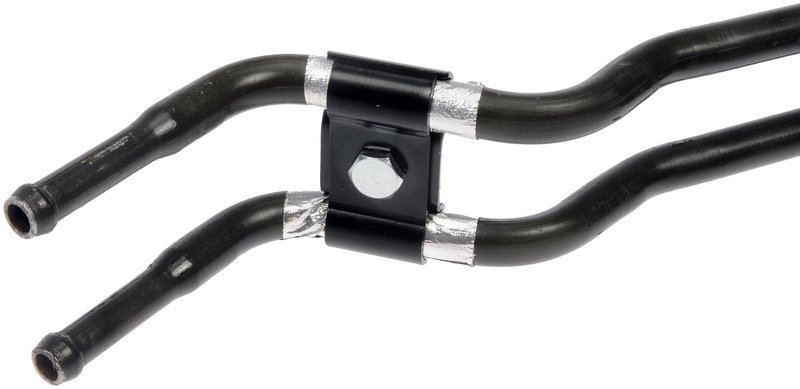

Dorman 624-550 Automatic Transmission Oil Cooler Hose Assembly

Automatic Transmission Oil Cooler Hose Assembly

Dorman 624-550 is a replacement automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit service part for 2001-2006 Hyundai Santa Fe applications and supports leak-resistant transmission fluid routing.

• Fits 2001-2006 Hyundai Santa Fe, N/A
• Metal hose construction with black and silver finish
• Molded assembly for OE-style routing
• Maximum working pressure: 100
• Operating temperature range: -40 Deg. F. to 329 Deg. F.
• End 1 inside diameter: 0.314

Detailed Product Overview

This Dorman transmission cooler hose assembly, part number 624-550, is made to replace a worn or leaking line that carries automatic transmission fluid to and from the cooler. The metal hose construction helps maintain a secure fluid path, while the molded assembly shape supports proper routing in the vehicle. For buyers searching for a Hyundai Santa Fe transmission oil cooler hose, Dorman 624-550 provides a fitment-specific replacement for 2001-2006 models.

This part cross-references 5801439 and 2547126000 for the same application.

Common Problems This Part Can Address

• Transmission fluid leakage at the cooler line
• Cracked, corroded, or damaged oil cooler hose sections
• Restricted fluid transfer between the transmission and cooler
• Improper hose routing caused by a failed molded line
• Service replacement for a worn Hyundai Santa Fe transmission line

Installation Notes and Tips

Verify the vehicle application before installation and compare the original line routing, end style, and dimensions to the replacement part. Because this assembly does not include gasket or seal components, reuse or source any required sealing parts separately if the vehicle setup calls for them. Confirm that the line is positioned correctly to avoid contact with hot or moving components.

Quality Assurance

Dorman manufactures this replacement hose assembly using metal and rubber components selected for transmission fluid service. The part is built to handle temperatures from -40 Deg. F. to 329 Deg. F. and a maximum working pressure of 100, supporting dependable fluid transfer in the transmission cooling circuit.
