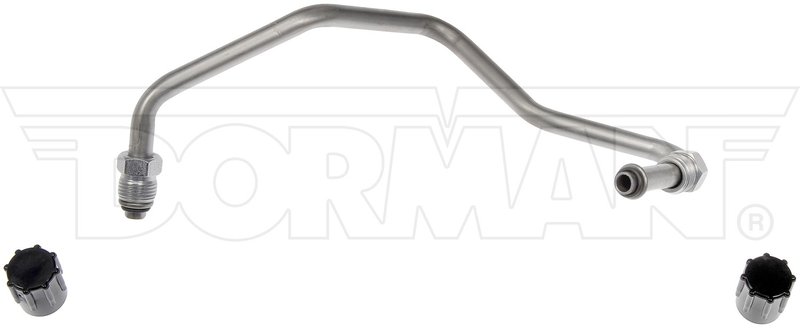

Dorman 624-564 Automatic Transmission Oil Cooler Hose Assembly - Lower
| Brand | Dorman 624-564 |
|---|---|
| Position | Lower |
| Contains Spring | No |
| End 1 Inside Diameter | 6.3 |
| End 1 Type | Male Threads |
| End 2 Type | Male Threads |
| Flexible | No |
| Gasket or Seal Included | Yes |
| Hose Color | Black |
| Hose Color | Silver |
| Hose Material | Metal |
| Hose Shape | Molded Assembly |
| Length | 9 |
| Maximum Operating Temperature (┬░F) | 302 Deg. F |
| Maximum Working Pressure | 1000 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F |
| Package Contents | 1 Transmission Line; 2 Threaded Connectors; 2 O-rings; 2 Caps |
| Fits | Dodge · 22 vehicles |
Replacement hose assembly. Direct-fit design for restoring fluid transfer in the transmission cooling system.
Metal and rubber construction. Built to deliver leak-free fluid flow between connected components.
Molded assembly. Rigid routing helps maintain a secure, factory-style fit.
Cross-references 5015416AA and 5801446 for the same application. See all 2.
Automatic Transmission Oil Cooler Hose Assembly
Dorman 624-564 is a replacement automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit solution for select Dodge Dakota and Dodge Durango lower transmission line applications.
- Fits 2000-2004 Dodge Dakota, lower
- Fits 2000-2001 Dodge Durango, lower
- Metal hose construction with black and silver finish
- Molded assembly with male-thread ends
- Includes gasket/seal components and threaded connectors, O-rings, and caps
- Maximum working pressure: 1000
- Operating temperature range: -40 Deg. F to 302 Deg. F
Detailed Product Information
This Dorman 624-564 transmission oil cooler hose assembly is engineered for lower-line routing on select Dodge Dakota and Dodge Durango models. The molded metal assembly uses male-thread connections and sealed interfaces to help maintain a secure fluid path between the transmission and the cooler. For buyers searching for a Dodge Dakota transmission cooler hose or a Dodge Durango lower transmission line, this part number 624-564 matches the listed applications and replaces OE-style routing with a direct replacement format.
This part cross-references Chrysler OE numbers 5015416AA and 5801446 for the same application.
What It Helps Address
- Transmission fluid leaks at the cooler line connection
- Cracked, corroded, or damaged cooler hose assemblies
- Restricted fluid transfer between the transmission and cooler
- Improper sealing at threaded hose ends
- Replacement needs for a lower transmission oil cooler line on Dodge Dakota and Dodge Durango
Installation Notes and Tips
Verify the lower-position routing before installation and confirm thread engagement, seal placement, and line alignment with the existing cooler and transmission ports. Inspect mating surfaces for damage and replace worn seals as needed during service. Confirm vehicle fitment by year, make, model, and position before ordering Dorman 624-564.
Quality Assurance
Dorman manufactures replacement components using metal and rubber construction to support leak-resistant fluid delivery in transmission cooling service. Part number 624-564 is built as a replacement assembly for the listed Dodge applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Dodge | Dakota | 3.7L | V6 | Lower | — |
| 2004 | Dodge | Dakota | 4.7L | V8 | Lower | — |
| 2003 | Dodge | Dakota | 3.9L | V6 | Lower | — |
| 2003 | Dodge | Dakota | 5.9L | V8 | Lower | — |
| 2003 | Dodge | Dakota | 4.7L | V8 | Lower | — |
| 2002 | Dodge | Dakota | 3.9L | V6 | Lower | — |
| 2002 | Dodge | Dakota | 5.9L | V8 | Lower | — |
| 2002 | Dodge | Dakota | 2.5L | L4 | Lower | — |
| 2002 | Dodge | Dakota | 4.7L | V8 | Lower | — |
| 2001 | Dodge | Dakota | 3.9L | V6 | Lower | — |
| 2001 | Dodge | Dakota | 5.9L | V8 | Lower | — |
| 2001 | Dodge | Dakota | 2.5L | L4 | Lower | — |
| 2001 | Dodge | Dakota | 4.7L | V8 | Lower | — |
| 2001 | Dodge | Durango | 5.9L | V8 | Lower | — |
| 2001 | Dodge | Durango | 4.7L | V8 | Lower | — |
| 2000 | Dodge | Dakota | 3.9L | V6 | Lower | — |
| 2000 | Dodge | Dakota | 5.9L | V8 | Lower | — |
| 2000 | Dodge | Dakota | 2.5L | L4 | Lower | — |
| 2000 | Dodge | Dakota | 4.7L | V8 | Lower | — |
| 2000 | Dodge | Durango | 5.2L | V8 | Lower | — |
| 2000 | Dodge | Durango | 5.9L | V8 | Lower | — |
| 2000 | Dodge | Durango | 4.7L | V8 | Lower | — |
