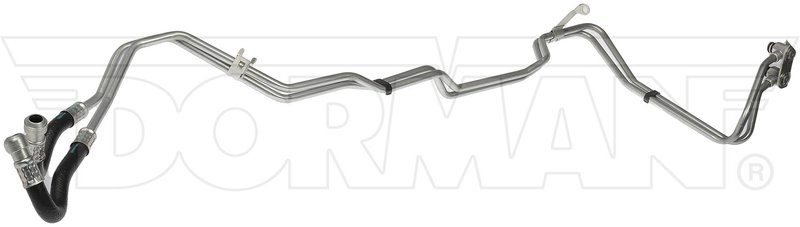

Dorman 624-566 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet
| Brand | Dorman 624-566 |
|---|---|
| Position | Inlet and Outlet |
| Contains Spring | No |
| End 1 Inside Diameter | 0.48 |
| End 1 Type | Female Quick Connector |
| End 2 Type | Block Connector |
| Flexible | Yes |
| Gasket or Seal Included | Yes |
| Hose Color | Black |
| Hose Color | Coated |
| Hose Material | Metal |
| Hose Material | Rubber |
| Hose Shape | Molded Assembly |
| Length | 77 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F |
| Package Contents | 2 Transmission Lines; 3 Brackets; 1 Retainer Clips; 4 O-rings |
| Fits | Ford · 2 vehicles |
Leak-free fluid delivery. Metal and rubber construction keeps transmission fluid moving reliably.
Molded assembly. Flexible hose follows the intended path with a secure fit.
Seals included. Comes with a gasket or seal for a tighter connection.
Cross-references 9L3Z7R081A for the same application. See all 1.
Dorman 624-566 Transmission Oil Cooler Hose
Replace a leaking or damaged transmission cooler line with the Dorman 624-566 automatic transmission oil cooler hose assembly. Built with metal and rubber components, this molded hose helps maintain a leak-free fluid path between the transmission and the transmission oil cooler on select Ford F-150 applications.
Fits 2009-2010 Ford F-150, inlet and outlet. The Dorman 624-566 is a direct-fit style replacement for vehicles that use a female quick connector on one end and a block connector on the other.
- Black, coated hose assembly with a molded shape for routing consistency
- Constructed from metal and rubber for strength and flexibility
- Includes gasket or seal for service-ready installation
- Rated for 100 maximum working pressure
- Operating range from -40 Deg. F to 329 Deg. F
- Compatible with 2009-2010 Ford F-150 transmission cooler inlet and outlet lines
Detailed Product Overview
This automatic transmission oil cooler hose assembly is 77 inches long and uses a female quick connector at End 1 with a block connector at End 2. The flexible molded assembly is built to carry transmission fluid between the transmission and cooler while resisting leaks under normal operating conditions. Dorman 624-566 is a practical replacement when the original line is cracked, corroded, or no longer sealing properly. This part cross-references Ford OE number 9L3Z7R081A for the same application.
Common Problems This Part Can Address
- Transmission fluid leaking from a damaged cooler hose
- Corrosion or wear in the original metal line section
- Cracked rubber sections causing pressure loss
- Poor sealing at the connector or seal interface
- Restricted fluid transfer between the transmission and cooler
Installation Notes and Tips
Verify connector style, line routing, and length before installation. Inspect mating surfaces, brackets, retainers, and O-ring sealing points for wear or contamination before connecting the new hose assembly. Confirm the line is routed away from heat sources and moving components, and check for leaks after refilling the transmission system.
Quality Assurance
Dorman replacement parts are engineered to match the function of the original component and use quality materials for dependable service. This hose assembly is built for the specified Ford F-150 inlet and outlet applications and is intended to restore proper transmission cooler line performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Ford | F-150 | Inlet and Outlet | — |
| 2009 | Ford | F-150 | Inlet and Outlet | — |
