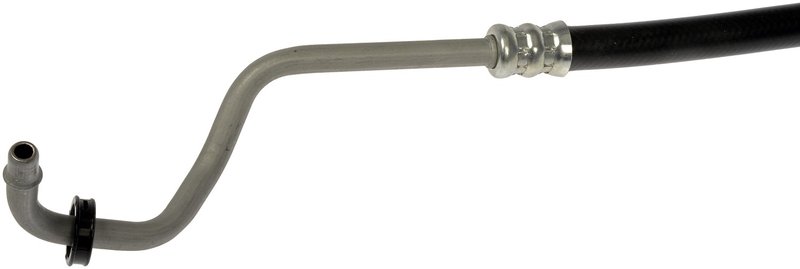

Dorman 624-586 Automatic Transmission Oil Cooler Hose Assembly - Outlet (Upper)
| Brand | Dorman 624-586 |
|---|---|
| Position | Outlet (Upper) |
| Contains Spring | No |
| End 1 Inside Diameter | 0.32 |
| End 1 Type | Male Quick Disconnect |
| End 2 Type | Male Quick Disconnect |
| Flexible | Yes |
| Gasket or Seal Included | No |
| Hose Color | Natural |
| Hose Material | Metal |
| Hose Material | Rubber |
| Hose Shape | Straight |
| Length | 15.35 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F |
| Package Contents | 1 Transmission Line |
| Fits | Chevrolet · 11 vehicles |
Leak-free delivery. Metal and rubber construction moves critical fluid between components.
Flexible design. Straight hose assembly with male quick disconnect ends for easier routing.
Transmission line. Replacement hose assembly for automatic transmission oil cooler service.
Cross-references 13413951 for the same application. See all 1.
Dorman 624-586 Transmission Oil Cooler Hose
Dorman 624-586 is a replacement automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit style line for select Chevrolet Cruze applications, including outlet (upper) locations.
Key Features
- Replacement automatic transmission oil cooler hose assembly
- Metal and rubber construction for fluid routing durability
- Straight hose design with flexible routing
- Male quick disconnect ends on both sides
- Natural hose color
- Rated for 100 psi maximum working pressure
- Operating temperature range: -40°F to 329°F
- Fits select 2014-2019 Chevrolet Cruze and 2016 Chevrolet Cruze Limited applications
Detailed Description
This Dorman transmission cooler hose is engineered to move automatic transmission fluid between the transmission and the cooler while maintaining a secure seal at the connection points. The hose uses metal and rubber materials to balance strength and flexibility, and the straight configuration supports clean routing in the engine bay. For Chevrolet Cruze owners searching for a transmission oil cooler hose assembly, Dorman 624-586 provides a direct replacement option for the outlet (upper) line on listed vehicles.
This part cross-references OE number 13413951 for the same application. Search terms such as 2015 Chevrolet Cruze transmission oil cooler hose, 2016 Chevrolet Cruze Limited outlet upper transmission line, and 2014 Chevrolet Cruze automatic transmission cooler hose assembly all point to this application. Dorman 624-586 is also a relevant search for 2017-2019 Chevrolet Cruze transmission line replacement.
Common Issues This Part Can Address
- Transmission fluid leakage at the cooler line
- Cracked or deteriorated hose material
- Damaged quick-disconnect connection points
- Restricted fluid transfer between the transmission and cooler
- Corrosion or wear in the original cooler line assembly
Installation Notes and Tips
Verify the vehicle’s outlet (upper) line configuration before ordering. This hose uses male quick disconnect ends and does not include a gasket or seal. Confirm routing, connection style, and clearance around the transmission cooler and adjacent components before installation. For best results, inspect the mating fittings and surrounding lines for wear or contamination before connecting the replacement hose.
Quality Assurance
Dorman replacement transmission lines are built to match the function of the original fluid path and use materials selected for temperature and pressure demands in automatic transmission cooling systems. Dorman 624-586 is intended for select Chevrolet Cruze and Chevrolet Cruze Limited applications listed in the fitment data.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | — |
| 2018 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | — |
| 2017 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | — |
| 2016 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | — |
| 2016 | Chevrolet | Cruze | 1.8L | L4 | Outlet (Upper) | — |
| 2016 | Chevrolet | Cruze Limited | 1.8L | L4 | Outlet (Upper) | — |
| 2016 | Chevrolet | Cruze Limited | 1.4L | L4 | Outlet (Upper) | — |
| 2015 | Chevrolet | Cruze | 1.8L | L4 | Outlet (Upper) | — |
| 2015 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | — |
| 2014 | Chevrolet | Cruze | 1.8L | L4 | Outlet (Upper) | wo/External TOC |
| 2014 | Chevrolet | Cruze | 1.4L | L4 | Outlet (Upper) | wo/External TOC |
