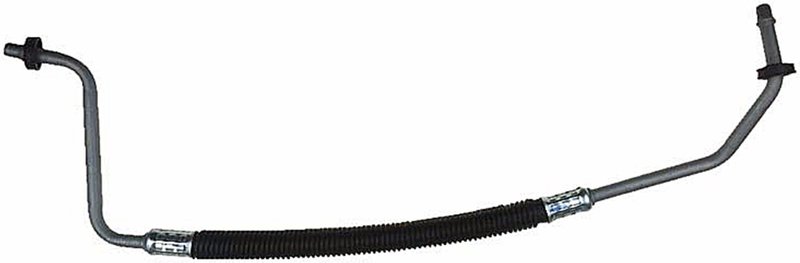

Dorman 624-610 Automatic Transmission Oil Cooler Hose Assembly
| Brand | Dorman 624-610 |
|---|---|
| Contains Spring | No |
| End 1 Inside Diameter | 7.5 |
| End 1 Type | Male Quick Disconnect |
| End 2 Type | Male Quick Disconnect |
| Flexible | Yes |
| Gasket or Seal Included | No |
| Hose Color | Black |
| Hose Color | Silver |
| Hose Material | Metal |
| Hose Material | Rubber |
| Hose Shape | Straight |
| Length | 20.9 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F. |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F. |
| Package Contents | 1 Transmission Line |
| Fits | Chrysler and Dodge · 7 vehicles |
Leak-free delivery. Metal and rubber construction moves critical fluid reliably.
Flexible design. Straight hose with quick-disconnect ends for easier routing.
Transmission line assembly. Replacement hose for the transmission oil cooler circuit.
Cross-references 5005203AA for the same application. See all 1.
Automatic Transmission Oil Cooler Hose for Chrysler and Dodge
Dorman 624-610 is a replacement automatic transmission oil cooler hose assembly for select Chrysler and Dodge minivans. It routes transmission fluid between the transmission and the oil cooler, helping maintain a sealed fluid path in pressure and return applications.
Key Features
- Constructed from metal and rubber components for durable fluid transfer
- Straight hose design with black and silver finish
- Male quick disconnect ends on both sides for OE-style connection points
- 20.9-inch length with 7.5 mm inside diameter at end 1
- Rated for 100 psi maximum working pressure
- Operates from -40°F to 329°F
- Flexible hose construction for routing in tight engine bay spaces
Detailed Description
This Dorman transmission line is built to replace the automatic transmission oil cooler hose used on 2008-2010 Chrysler Town & Country, 2008 Chrysler Voyager, and 2008-2010 Dodge Grand Caravan models. Part number 624-610 is made with metal and rubber materials to support leak-resistant fluid delivery between the transmission and the transmission oil cooler. It is a direct-fit style replacement for pressure and return line applications where the original hose assembly has worn, cracked, or begun to seep.
This part cross-references Chrysler 5005203AA for the same application.
What It Helps Fix
- Transmission fluid leaks at the cooler hose assembly
- Cracked or deteriorated hose material from heat and age
- Loose or damaged quick disconnect connections
- Restricted fluid transfer between the transmission and cooler
- Service issues caused by a failed pressure or return line
Installation Notes and Tips
Verify the vehicle application before installation, especially on 2008-2010 Chrysler Town & Country, 2008 Chrysler Voyager, and 2008-2010 Dodge Grand Caravan models. Inspect the mating ports and sealing surfaces for wear or contamination before connecting the new hose assembly. Because no gasket or seal is included, reuse or replace any required sealing components separately if the vehicle calls for them.
Quality Assurance
Dorman replacement parts are engineered to match OE-style fit and function for repair applications. This hose assembly is built from quality metal and rubber components to support dependable transmission fluid routing in the specified Chrysler and Dodge vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Chrysler | Town & Country | 3.3L | V6 | N/A | Pressure and Return |
| 2010 | Dodge | Grand Caravan | 3.3L | V6 | N/A | Pressure and Return |
| 2009 | Chrysler | Town & Country | 3.3L | V6 | N/A | Pressure and Return |
| 2009 | Dodge | Grand Caravan | 3.3L | V6 | N/A | Pressure and Return |
| 2008 | Chrysler | Town & Country | 3.3L | V6 | N/A | Pressure and Return |
| 2008 | Chrysler | Voyager | 3.3L | V6 | N/A | Pressure and Return |
| 2008 | Dodge | Grand Caravan | 3.3L | V6 | N/A | Pressure and Return |
