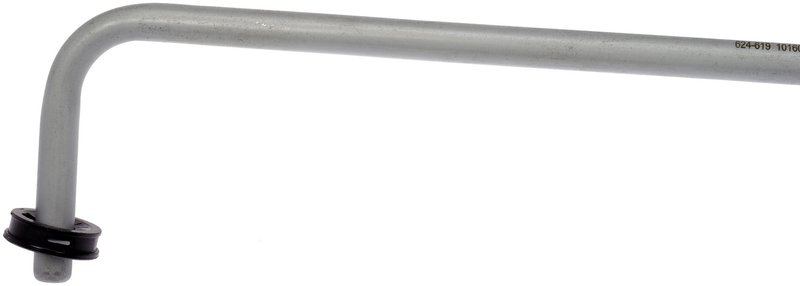

Dorman 624-619 Automatic Transmission Oil Cooler Hose Assembly - Inlet (Upper)
| Brand | Dorman 624-619 |
|---|---|
| Position | Inlet (Upper) |
| Contains Spring | No |
| End 1 Inside Diameter | 0.31 |
| End 1 Type | Quick Disconnect |
| End 2 Type | Clamp |
| Flexible | Yes |
| Gasket or Seal Included | No |
| Hose Color | Natural |
| Hose Material | Metal |
| Hose Material | Rubber |
| Hose Shape | Straight |
| Length | 8.0 |
| Maximum Operating Temperature (┬░F) | 329 Deg. F |
| Maximum Working Pressure | 100 |
| Minimum Operating Temperature (┬░F) | -40 Deg. F |
| Package Contents | 1 Transmission Line |
| Fits | Cadillac · 7 vehicles |
Leak-free delivery. Metal and rubber construction moves critical fluid reliably.
Quick disconnect end. Clamp connection on the other side simplifies replacement.
Straight hose design. Flexible 8-inch line fits cleanly in tight routing.
Cross-references 15928508 for the same application. See all 1.
Dorman 624-619 Transmission Oil Cooler Hose
Dorman 624-619 is a replacement automatic transmission oil cooler hose assembly for the transmission-to-cooler fluid path. It uses metal and rubber construction to support leak-free fluid transfer in the cooling circuit on select Cadillac SRX models.
Key Features
- Direct replacement automatic transmission oil cooler hose assembly
- Metal and rubber construction for durability and flexibility
- Straight hose design with quick disconnect end and clamp end
- 8.0-inch hose length with natural finish
- Rated for 100 psi maximum working pressure
- Operating temperature range: -40°F to 329°F
- Fits 2010-2016 Cadillac SRX, inlet (upper), without trailer tow package
Detailed Description
This Dorman transmission line is built to replace the upper inlet oil cooler hose on 2010-2016 Cadillac SRX vehicles without the trailer tow package. Part number 624-619 is engineered for the automatic transmission cooling circuit, where secure routing and sealed connections are important for maintaining fluid flow between the transmission and the transmission oil cooler. This part cross-references OE number 15928508 for the same application.
What It Helps Fix
- Transmission fluid seepage at a worn hose connection
- Cracked or deteriorated cooler hose material
- Restricted fluid transfer between the transmission and cooler
- Damage from age, heat, or vibration in the cooling line
- Fitment issues on the upper inlet line for Cadillac SRX applications
Installation Notes and Tips
Verify the vehicle is a 2010-2016 Cadillac SRX with the inlet (upper) hose location and without the trailer tow package before installation. Inspect the mating fittings, clamps, and sealing surfaces for wear or contamination, and confirm the hose routing matches the original line. This assembly uses a quick disconnect on one end and a clamp connection on the other.
Quality Assurance
Dorman replacement parts are built to match the function of the original transmission cooler line for the listed application. The metal-and-rubber construction is selected to handle transmission fluid temperatures and pressure demands in normal service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2015 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2014 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2013 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2012 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2011 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| 2010 | Cadillac | SRX | Inlet (Upper) | wo/Trailer Tow Package |
| No rows match your filter. | ||||
