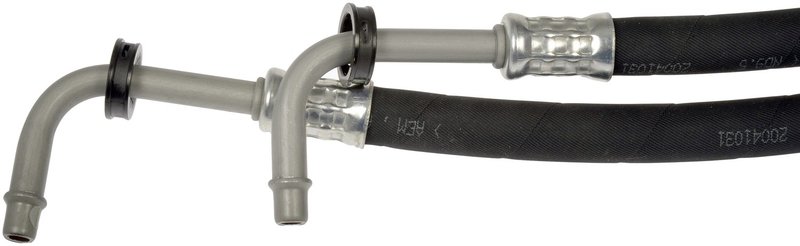

Dorman 624-640 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet

Transmission Cooler Hose Assembly for Jeep and Dodge

Dorman 624-640 is an automatic transmission oil cooler hose assembly built with metal and rubber components for fluid transfer between the transmission and the transmission oil cooler. It is a direct-fit replacement for select Jeep Compass, Jeep Patriot, and Dodge Caliber applications with quick disconnect ends.

Key Features

• Direct replacement automatic transmission oil cooler hose assembly
• Metal and rubber construction for leak-resistant fluid routing
• Quick disconnect ends on both sides for OE-style connection points
• Straight hose design with natural finish
• Rated for 100 psi maximum working pressure
• Operating temperature range: -40 Deg. F to 329 Deg. F
• Fits inlet and outlet transmission cooler line locations

Detailed Product Overview

This Dorman transmission line is engineered for vehicles that route automatic transmission fluid through an external cooler. The 8.1-inch straight hose uses quick disconnect fittings at both ends and 0.31-inch inside diameter connections to maintain secure fluid flow. Dorman 624-640 is listed for 2010-2017 Jeep Compass and 2010-2017 Jeep Patriot models without Off Road Crawl Ratio Transmission, as well as 2010-2012 Dodge Caliber applications.

This part cross-references Mopar 68078998AA for the same application. For buyers searching for a Jeep Compass transmission cooler hose, Jeep Patriot transmission oil cooler line, or Dodge Caliber automatic transmission line, Dorman 624-640 provides a direct replacement option built to match the original routing and connection style.

What It Helps Address

• Transmission fluid leaks at the cooler line connection
• Cracked, corroded, or damaged factory hose assemblies
• Restricted fluid transfer between the transmission and cooler
• Loose or worn quick disconnect fittings
• Service issues on inlet and outlet transmission cooler line locations

Installation Notes

Verify vehicle fitment by year, make, model, and transmission configuration before installation. This hose assembly uses quick disconnect ends and does not include a gasket or seal. Inspect the mating cooler and transmission ports for wear, contamination, or damage before connecting the new line. Confirm proper routing to avoid contact with hot or moving components.

Quality Assurance

Dorman manufactures this replacement transmission cooler hose assembly with metal and rubber materials selected for fluid handling and temperature resistance in automotive cooling circuits. The design follows OE-style connection points for the listed Jeep and Dodge applications.
