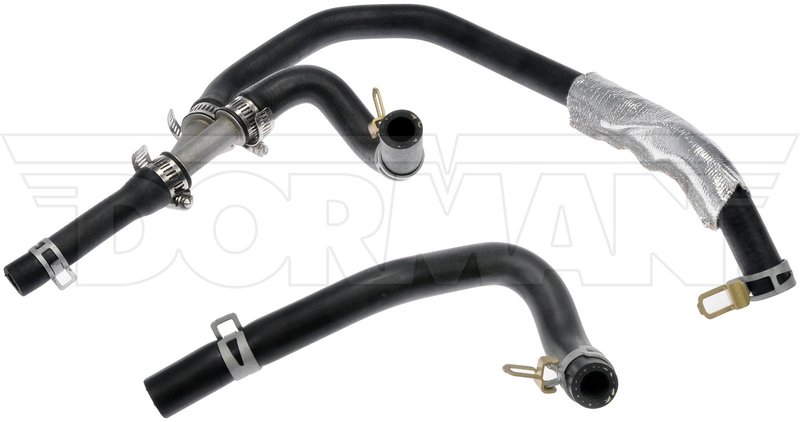

Dorman 626-561 HVAC Heater Hose Assembly

Overview of Dorman HVAC Heater Hose Assembly 626-561

The Dorman HVAC Heater Hose Assembly 626-561 is designed specifically for Dodge Journey models, providing reliable coolant flow within the heating system. Constructed from durable aluminum and rubber materials, this heater hose assembly ensures consistent performance under typical operating conditions.

• Material: Aluminum and rubber for durability and flexibility
• Color: Natural finish
• Includes clamps for secure installation
• Uniform inside diameter of 0.75 inches on all three ends
• Maximum working pressure of 100 PSI
• Centerline length of 8 inches
• Hose ends with 0.95 inch outside diameter
• Compatible with single or dual coolant hose systems
• End attachment type: Hose connections on all three ends

Detailed Product Description

This HVAC heater hose assembly from Dorman is engineered to meet the specifications required for the Dodge Journey's heating and cooling system. The combination of aluminum and rubber materials provides a balance of strength and flexibility, allowing the hose to withstand pressure up to 100 PSI while maintaining a secure seal. The natural color finish reflects the raw materials used, and the included clamps simplify installation by ensuring tight connections at all three hose ends. Each end features a consistent 0.75 inch inside diameter and 0.95 inch outside diameter, making it compatible with the vehicle's existing hose fittings. This assembly is designed for use in single or dual coolant hose configurations, making it a versatile replacement part for the HVAC system.

Common Applications and Issues Addressed

• Replacement of worn or cracked heater hoses in Dodge Journey HVAC systems
• Resolving coolant leaks caused by damaged or deteriorated hoses
• Restoring proper coolant flow to the heater core for effective cabin heating
• Preventing overheating issues related to compromised heater hose assemblies
• Maintaining system pressure integrity with a hose rated for 100 PSI maximum working pressure

Installation Notes and Tips

When installing the Dorman HVAC Heater Hose Assembly 626-561, ensure the vehicle is cool and the cooling system is depressurized to avoid injury. Use the included clamps to secure each hose end firmly, preventing leaks. Verify that the hose routing matches the original configuration to avoid kinks or interference with other engine components. Inspect adjacent hoses and connections for wear during installation to maintain overall system integrity.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The HVAC Heater Hose Assembly 626-561 undergoes quality checks to ensure durability and performance in Dodge Journey vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship, providing confidence in the product's reliability.
