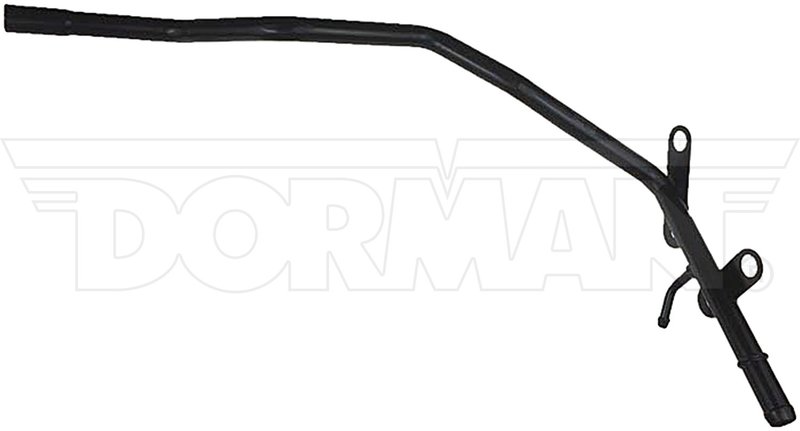

Dorman 626-567 HVAC Heater Hose Assembly - Outlet

Overview of Dorman HVAC Heater Hose Assembly 626-567

The Dorman HVAC Heater Hose Assembly 626-567 is designed to provide reliable heating system performance for select Ford vehicles. Engineered with durable steel construction and a molded assembly shape, this heater hose assembly ensures consistent coolant flow and heat transfer in your vehicle's HVAC system.

• Constructed from steel with a black coated finish for corrosion resistance
• Molded assembly design with two branches for precise fitment
• End 1 inside diameter: 0.55 inches; End 2 inside diameter: 0.62 inches
• Centerline length of 21 inches for accurate installation
• Maximum working pressure rated at 100 psi
• Compatible with hose and straight attachment types on respective ends
• Does not include clamps or protective sleeves

Detailed Product Description

The Dorman 626-567 HVAC Heater Hose Assembly is a steel molded assembly designed to replace worn or damaged heater hoses in Ford vehicles such as the E-150, E-250, Econoline, Expedition, and F-150 models. Its black coated steel construction offers durability and resistance to corrosion, while the molded shape with two branches ensures a precise fit within the HVAC system. The hose assembly features a single inside diameter design with 0.55 inches on one end and 0.62 inches on the other, accommodating different connection points. With a centerline length of 21 inches and a maximum working pressure of 100 psi, this heater hose assembly supports efficient coolant flow and heat transfer without the need for additional heat shields or protective sleeves.

Applications and Common Issues Addressed

• Replacement of cracked or leaking heater hoses in Ford E-150 and Econoline models
• Resolving coolant leaks that cause insufficient cabin heating
• Addressing hose failures due to corrosion or wear in F-150 and Expedition HVAC systems
• Eliminating overheating issues related to compromised heater hose assemblies
• Restoring proper coolant circulation within the vehicle’s heating system

Installation Notes and Tips

When installing the Dorman 626-567 heater hose assembly, ensure the vehicle is cool and the cooling system is depressurized. Verify the hose orientation matches the molded assembly shape for proper fitment. Since clamps are not included, reuse existing clamps if in good condition or source appropriate replacements. Check all connections for secure attachment to prevent leaks. This assembly is designed for direct replacement on compatible Ford models without requiring additional heat shields.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 626-567 heater hose assembly undergoes quality control testing to ensure durability and performance under normal operating conditions. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
