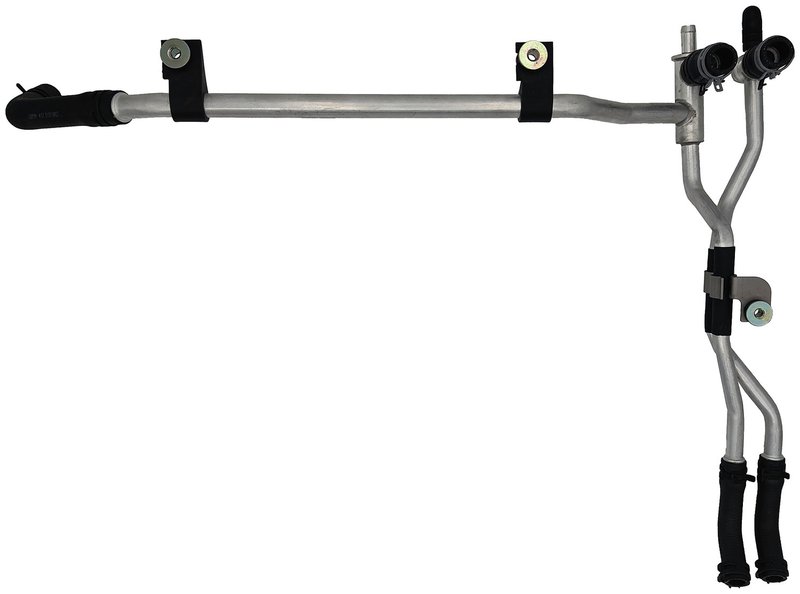

Dorman 626-688 HVAC Heater Hose Assembly - Inlet and Outlet

Brand Dorman 626-688
Position Inlet and Outlet
Material Epdm
Material Metal
Color Black
Color Negro
Color Plateado
Color Silver
Clamps Included No
Clamps Included Non
End 1 Inside Diameter 19
End 2 Inside Diameter 19
Contains Spring No
Contains Spring Non
Maximum Working Pressure 100
Centerline Length 1108.11
End 3 Inside Diameter 19
Hose Shape Ensamble moldeado
Hose Shape Molded assembly
Protective Sleeve Attached No
Protective Sleeve Attached Non
Maximum Bend Angle 90
Grade Type Reemplazo estándar
Grade Type Standard replacement
Burst Pressure 100
Axis 1 Length 632
Axis 2 Length 503
Branch Quantity 1
Branch Quantity 1 ensamble de manguera del calentador
Contenidos del paquete 1 ensamble de manguera del calentador
Coolant Hose Heat Shield Included No
Coolant Hose Heat Shield Included Non
Fits Nissan · 8 vehicles

OE FIX replacement. Upgraded aluminum T-connector helps prevent repeat failures.

Molded assembly. Branched EPDM hose follows the original routing cleanly.

Quick-connect ends. Makes installation straightforward with secure connections.

Cross-references SKP SK121394 and 92408ZL90B for the same application. See all 2.

$166.40Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $166.40
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

HVAC Heater Hose Assembly for Pathfinder

This Dorman HVAC heater hose assembly is a direct-fit replacement for select Nissan Pathfinder models with rear HVAC. It addresses a common failure point in the original design by using an upgraded aluminum T-connector instead of the plastic connector found on many OE assemblies. Part number 626-688 is built for the inlet and outlet heater hose routing on 2005-2012 Nissan Pathfinder applications.

Key Features

  • OE FIX replacement for the HVAC heater hose assembly
  • Upgraded aluminum T-connector helps reduce repeat failures from cracked plastic connectors
  • EPDM rubber construction with metal connector components
  • Quick-connect ends for factory-style attachment
  • Branched molded hose assembly for inlet and outlet routing
  • Fits 2005-2012 Nissan Pathfinder, inlet and outlet, with rear HVAC
  • Part number 626-688 for application matching and search reference

Detailed Description

Dorman 626-688 is an HVAC heater hose assembly engineered for Nissan Pathfinder models equipped with rear HVAC. The molded branched design follows the factory routing and uses quick-connect ends for a direct replacement on the inlet and outlet connections. The assembly is made from EPDM with metal reinforcement at the connector area, and the aluminum T-connector is used to address the cracking issue commonly seen in original plastic parts. This makes 626-688 a practical replacement for owners searching for a Nissan Pathfinder heater hose assembly, rear HVAC heater hose, or Dorman 626-688 heater hose replacement.

This part cross-references SKP SK121394 for the same application.

Common Problems This Part Can Address

  • Coolant leaks from a cracked heater hose T-connector
  • Loss of heater performance caused by damaged hose routing
  • Coolant seepage at quick-connect heater hose ends
  • Failure of the original plastic connector in the HVAC hose assembly
  • Service issues on rear HVAC heater hose lines in Pathfinder models

Installation Notes and Tips

Verify the vehicle is a 2005-2012 Nissan Pathfinder with rear HVAC before ordering. Confirm inlet and outlet routing, quick-connect style ends, and hose path against the original assembly. Drain coolant as needed before removal, inspect mating connections for wear or residue, and transfer the hose assembly carefully to avoid stressing the molded sections. After installation, refill and bleed the cooling system according to factory service procedures and check for leaks at both ends.

Quality Assurance

Dorman OE FIX parts are built to correct known failure points in original equipment designs. This assembly replaces the plastic T-connector with an aluminum version to improve durability in the connector area while maintaining factory-style fitment for the specified Nissan Pathfinder applications.

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2012NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2011NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2010NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2009NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2008NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2007NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2006NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
2005NissanPathfinder4.0LV6Inlet and Outletw/Rear HVAC
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
SKP — SK12139492408ZL90B
