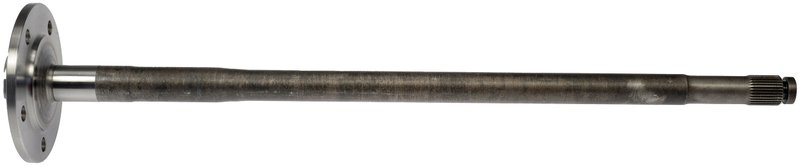

Dorman 630-039 Drive Axle Shaft - Rear Left
Dorman 630-039 Rear Left Axle Shaft
Dorman 630-039 is a direct replacement drive axle shaft for select rear left applications on the Dodge Dakota and Mitsubishi Raider. It is built to replace a damaged axle shaft or one affected by worn bearings, while matching the original equipment layout for the specified vehicles.
Key Features
- Direct replacement axle shaft for select rear left applications
- Fits 2005-2011 Dodge Dakota, rear left, with Sales Code DRB (Corporate 9.25 Light Duty Rear Axle)
- Fits 2006-2009 Mitsubishi Raider, rear left, with Sales Code DRB (Corporate 9.25 Light Duty Rear Axle)
- Carbon steel shaft construction with galvanized finish
- Full floating axle type with 31 inboard splines
- Axle shaft seal included
- 5 mounting holes and 140 mm wheel bolt pattern
Detailed Description
This Dorman axle shaft is engineered for vehicles that use the Corporate 9.25 Light Duty Rear Axle configuration. The shaft measures 845.5 mm in length, with a 34.5 mm shaft diameter and 36 mm spline length, and it is built from carbon steel with a galvanized finish for added corrosion resistance. Dorman 630-039 is a practical OE-style replacement for rear axle service on the Dodge Dakota and Mitsubishi Raider applications listed below.
This part cross-references OE numbers 3507898AB and 6036659AA for the same application.
What It Helps Address
- Broken or damaged rear axle shaft
- Noise or vibration related to axle shaft wear
- Service needs tied to worn axle bearings
- Leak concerns at the axle shaft seal area
- Restoration of rear axle function after driveline damage
Installation Notes and Tips
- Verify axle code DRB before ordering or installation.
- Confirm rear left position and vehicle year against the fitment list.
- Inspect bearings and seals during axle service to avoid repeat repairs.
- Check spline count, bolt pattern, and mounting-hole layout before assembly.
Quality Assurance
Dorman manufactures this axle shaft as a direct-fit replacement for the listed applications, with application-specific components included where required by the design. It is intended to match OE fitment details for the specified Dodge Dakota and Mitsubishi Raider rear axle configurations.
| Brand | Dorman |
|---|---|
| Part Number | 630-039 |
| Wheel Bolt Pattern Size | 140 mm |
| Rust Resistant Coating | No |
| Rust Resistant Coating | Non |
| Wheel Stud Quantity | 0 |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Shaft Length | 845.5 |
| Shaft Material | Acero al carbono |
| Shaft Material | Carbon steel |
| Universal Joints Included | No |
| Universal Joints Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 31 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| Mounting Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| ABS Tone Ring Included | Non |
| Shaft Diameter | 34.5 |
| Spline Length | 36 |
| Differential Case Design Type | Semi floating |
| Differential Case Design Type | Semiflotante |
| Wheel Nuts Included | No |
| Wheel Nuts Included | Non |
| Brake Hardware Included | No |
| Brake Hardware Included | Non |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2011 | Ram | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2010 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2009 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2009 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2008 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2008 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2007 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2007 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2006 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2006 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
| 2005 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
