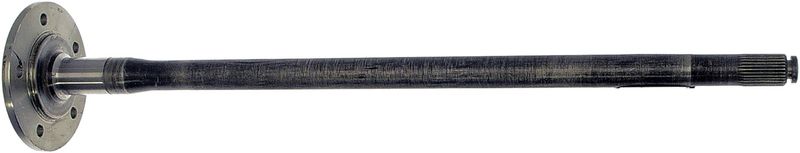

Dorman 630-107A Drive Axle Shaft - Rear Left or Rear Right
| Brand | Dorman 630-107A |
|---|---|
| Position | Rear Right and Rear Left |
| Wheel Bolt Pattern Size | 5 x 5 in |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 30 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | No |
| ABS Tone Ring Included | Non |
| Differential Case Design Type | 10 tornillos de gm |
| Differential Case Design Type | Gm 10 bolt |
| ABS Tone Ring Installed | No |
| ABS Tone Ring Installed | Non |
| Anillo del tono del ABS instalado | No |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | Eje axial |
| Diameter | 34 mm |
| Diameter | 34mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 5 |
| Length (In) | 31.38 in |
| Length (In) | 31.38 in. |
| Longitud (in) | 31.38 in. |
| Material | Acero al carbono |
| Fits | Chevrolet and GMC · 10 vehicles |
Direct replacement. Matches the original axle shaft configuration for select applications.
Solid shaft design. Carbon steel construction with a galvanized finish for service use.
Application-specific components. Built for the required installation setup on listed fitments.
Cross-references 26010415 for the same application. See all 1.
Direct replacement axle shaft
Dorman 630-107A is a drive axle shaft for select GM full-size trucks and SUVs. It directly replaces the original equipment axle shaft and is built for applications where the shaft is damaged or the bearings are worn.
Key features
- Direct replacement design for the original axle shaft
- Solid shaft axle construction
- Carbon steel material with a galvanized finish
- 30-spline inboard design with a 5 x 5 in wheel bolt pattern
- Application-specific installation components included
Detailed description
This Dorman axle shaft 630-107A is engineered for select Chevrolet and GMC applications that use a GM 10-bolt differential case design. It measures 31.38 inches in length, has a 34 mm diameter, and uses a solid shaft axle layout with no CV joints, axle nut, retainer, or ABS tone ring included. The part number 630-107A is a direct OE-style replacement for restoring axle function on compatible rear axle applications. This part cross-references 26010415 for the same application.
What it is used for
- Replacing a bent, broken, or worn axle shaft
- Addressing bearing-related axle shaft wear
- Restoring driveline function in rear axle service
- Repairing axle issues on Chevrolet and GMC Suburban applications
Installation notes and tips
Fits 1987 Chevrolet R10 Suburban, rear right. Fits 1987 GMC R1500 Suburban, rear left. Fits 1988 Chevrolet R10 Suburban, rear right. Fits 1988 GMC R1500 Suburban, rear right. Fits 1989-1991 Chevrolet R1500 Suburban, rear left. Fits 1989-1991 GMC R1500 Suburban, rear left. Review the notes for each application before installation, since the listed fitments do not include bearing, seal, or hardware.
Quality assurance
Dorman manufactures this axle shaft as a direct replacement part for select original equipment applications. The 630-107A part number is identified for the listed fitments and is built to match the required application-specific configuration.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | Chevrolet | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | GMC | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Chevrolet | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | GMC | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | Chevrolet | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | GMC | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1988 | Chevrolet | R10 Suburban | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 1988 | GMC | R1500 Suburban | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 1987 | Chevrolet | R10 Suburban | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 1987 | GMC | R1500 Suburban | Rear Left | Does Not Include Bearing, Seal, or Hardware |
