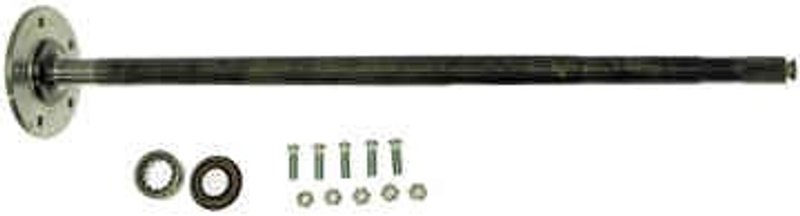

Dorman 630-109 Drive Axle Shaft - Rear Left

Overview of Dorman 630-109 Drive Axle Shaft

The Dorman 630-109 drive axle shaft is designed for reliable performance in Chevrolet Astro and GMC Safari vehicles. Engineered with durable carbon steel, this solid shaft axle provides a precise fit and long-lasting durability for your driveline system.

• Compatible with Chevrolet Astro and GMC Safari models
• Solid shaft axle design for strength and stability
• Length of 34.82 inches for exact fitment
• 28 splines and 5 lug wheel configuration
• Includes axle shaft, wheel studs, wheel nuts, bearing, and seal
• Constructed from high-quality carbon steel material
• Does not include ABS tone ring

Detailed Product Description

The Dorman 630-109 drive axle shaft is a direct replacement part engineered to meet OEM specifications for Chevrolet Astro and GMC Safari vehicles. Featuring a solid shaft axle design, it offers enhanced strength and durability under various driving conditions. The axle shaft measures 34.82 inches in length and includes 28 splines, ensuring a secure connection to the drivetrain. The 5-hole wheel lug pattern matches the factory setup, making installation straightforward. This axle shaft is manufactured from carbon steel, providing resistance to wear and corrosion over time. The package includes essential components such as wheel studs, wheel nuts, bearing, and seal, allowing for a comprehensive replacement in one kit. Note that this part does not include an ABS tone ring, so it is intended for vehicles without ABS sensor requirements.

Common Applications and Issues Addressed

• Replacement for worn or damaged axle shafts on Chevrolet Astro and GMC Safari
• Resolves issues related to axle shaft bending or breakage
• Addresses wheel vibration caused by faulty axle components
• Fixes leaking seals and bearing wear affecting driveline performance
• Restores proper wheel lug alignment and secure fitment

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Astro or GMC Safari before installation
• Ensure all included components such as wheel studs and nuts are used for proper assembly
• Check spline engagement carefully to avoid drivetrain damage
• Inspect bearing and seal condition during installation to prevent leaks
• Torque wheel lug nuts to manufacturer specifications for safety

Quality Assurance and Warranty

Dorman manufactures the 630-109 drive axle shaft to meet or exceed OEM standards, using carbon steel for durability and strength. While specific warranty details are not provided, Dorman parts typically come with a limited warranty covering defects in material and workmanship. This ensures confidence in the product’s reliability when installed in compatible Chevrolet Astro and GMC Safari vehicles.
