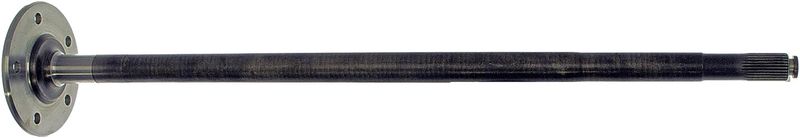

Dorman 630-109A Drive Axle Shaft - Rear Left
| Brand | Dorman 630-109A |
|---|---|
| Position | Rear Left |
| Wheel Bolt Pattern Size | 5 x 5 in |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 28 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | No |
| ABS Tone Ring Included | Non |
| Differential Case Design Type | 10 tornillos de gm |
| Differential Case Design Type | Gm 10 bolt |
| ABS Tone Ring Installed | No |
| ABS Tone Ring Installed | Non |
| Anillo del tono del ABS instalado | No |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | Eje axial |
| Diameter | 34.2 mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 5 |
| Length (In) | 34.82 in |
| Length (In) | 34.82 in. |
| Longitud (in) | 34.82 in. |
| Material | Acero al carbono |
| Material | Carbon steel |
| Fits | Chevrolet and GMC · 26 vehicles |
Direct replacement. Matches the original equipment axle shaft for select GM driveline applications.
Solid shaft design. Carbon steel construction with a galvanized finish for service durability.
Application-specific fit. Built around the GM 10-bolt differential case design and 28-spline layout.
Cross-references 26047182 for the same application. See all 1.
Drive axle shaft replacement
This Dorman drive axle shaft is a direct replacement for the original equipment on select GM vans. It is built for the rear left position and matches the application-specific dimensions and spline count needed for a proper service replacement.
Key features
- Direct replacement axle shaft for select GM driveline applications
- Solid shaft axle construction with carbon steel material
- Galvanized finish for added corrosion resistance
- 28-spline inboard design with 5-lug wheel pattern
- 34.82 in. length and 34.2 mm diameter
Detailed description
Part number 630-109A is engineered as an OE-style axle shaft replacement for 1990-2002 Chevrolet Astro and 1990-2002 GMC Safari rear left applications. It is designed around the GM 10-bolt differential case design and uses a solid axle layout rather than a CV-style assembly. The shaft does not include wheel studs, axle nut, retainer, ABS tone ring, or CV joints, so it is intended for service work where the existing application-specific components are reused or sourced separately. Part number 630-109A also cross-references 26047182 for the same application.
What it is used for
- Replacing a damaged axle shaft
- Restoring driveline function after bearing wear
- Addressing spline or shaft wear
- Servicing a rear axle assembly with missing or damaged shaft components
Installation notes and tips
Fits 1990-2002 Chevrolet Astro, rear left. Fits 1990-2002 GMC Safari, rear left. Verify the GM 10-bolt differential case design, 28-spline configuration, and 5 x 5 in. wheel bolt pattern before installation. This axle shaft does not include bearing, seal, or hardware, so those components must be confirmed separately during service. Part number 630-109A should be matched to the vehicle’s existing axle specifications before installation.
Quality assurance
Dorman supplies this axle shaft as a direct replacement part for select original equipment applications, with application-specific installation components included as provided by the manufacturer.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2002 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2001 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2001 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2000 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2000 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1999 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1999 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1998 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1998 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1997 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1997 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1996 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1996 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1995 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1995 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1994 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1994 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1993 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1993 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1992 | Chevrolet | Astro | RWD | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1992 | GMC | Safari | RWD | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Chevrolet | Astro | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | GMC | Safari | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
