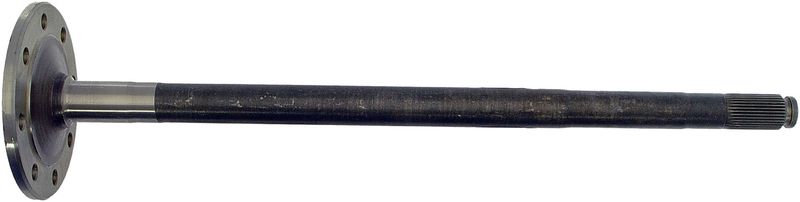

Dorman 630-218A Drive Axle Shaft - Rear Left or Rear Right
| Brand | Dorman 630-218A |
|---|---|
| Position | Rear Right and Rear Left |
| Wheel Bolt Pattern Size | 5 x 4.5 |
| Wheel Bolt Pattern Size | 5 x 4.5 in |
| Wheel Bolt Pattern Size | 5 x 4.5 in. |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 28 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | Oui |
| ABS Tone Ring Included | Sí |
| ABS Tone Ring Included | Yes |
| Differential Case Design Type | F 7.5/8.8 |
| ABS Tone Ring Installed | Oui |
| ABS Tone Ring Installed | Yes |
| Anillo del tono del ABS instalado | Sí |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | 1 anillo de tono abs |
| Diameter | 31.6 mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 5 |
| Length (In) | 30.59 in |
| Length (In) | 30.59 in. |
| Longitud (in) | 30.59 in. |
| Fits | Ford · 6 vehicles |
Direct replacement. Matches the original equipment layout for the listed axle applications.
Solid carbon steel. Built with a galvanized finish for added corrosion resistance.
ABS tone ring installed. Configured for service where wheel speed signal components are required.
Cross-references XR3Z4234AA for the same application. See all 1.
Overview
This Dorman drive axle shaft is a direct replacement for select Ford Mustang applications. It is built for rear axle service and follows the original equipment layout for the listed fitments, including the correct spline and bolt pattern details.
Part number 630-218A is intended for vehicles with the specified rear left or rear right application, depending on model year. If you are replacing a worn or damaged axle shaft on a Ford Mustang, 630-218A provides a fitment-specific solution.
Key Features
- Direct replacement axle shaft for the listed applications
- Solid shaft axle construction in carbon steel
- Galvanized finish for added corrosion resistance
- ABS tone ring installed and included
- 28 inboard splines with a 5 x 4.5 in wheel bolt pattern
- Application-specific installation components included by design
Detailed Description
Dorman 630-218A is a drive axle shaft engineered for select Ford Mustang rear axle applications. It uses a solid shaft axle design with carbon steel construction, a galvanized finish, and an installed ABS tone ring to match the requirements of the listed vehicles. The shaft measures 30.59 inches in length and uses a 5-lug, 5 x 4.5 inch wheel bolt pattern.
This part number 630-218A cross-references XR3Z4234AA for the same application. For Ford Mustang rear axle repair, this axle shaft addresses common replacement needs while matching the specified spline count, differential case design type, and ABS tone ring configuration.
What It Is Used For
- Replacing a damaged axle shaft
- Restoring driveline function after bearing wear
- Correcting ABS tone ring-related service needs
- Repairing rear axle issues on listed Ford Mustang models
Installation Notes
Fits 1999 Ford Mustang, rear left. Fits 2000-2001 Ford Mustang, rear right. Fits 2002-2003 Ford Mustang, rear left. Fits 2004 Ford Mustang, rear right. This part does not include the bearing, seal, or hardware listed in the fitment notes. Verify spline count, bolt pattern, and axle position before installation.
Quality Assurance
Dorman designs this axle shaft as a direct replacement part for the specified applications, with application-specific installation components included in the product design.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Ford | Mustang | Base | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2003 | Ford | Mustang | Base | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2002 | Ford | Mustang | Base | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2001 | Ford | Mustang | Base | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2000 | Ford | Mustang | — | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 1999 | Ford | Mustang | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
