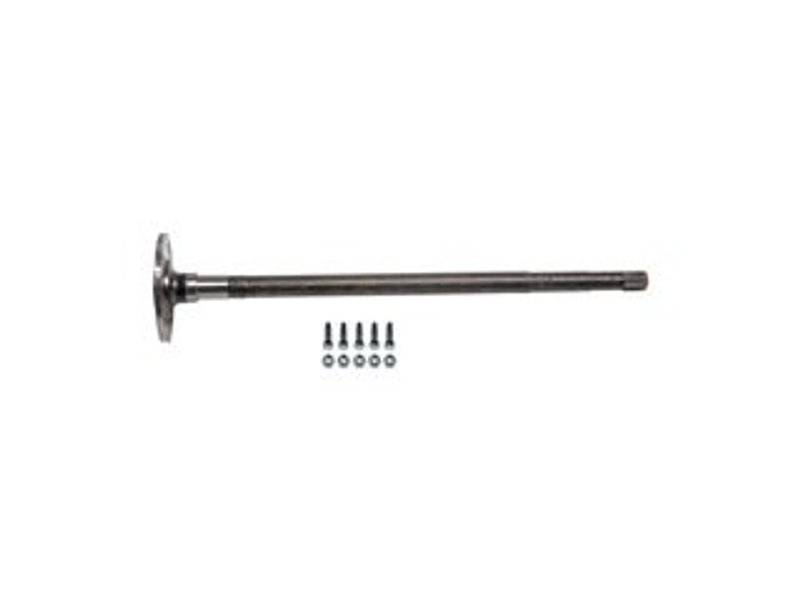

Dorman 630-224 Drive Axle Shaft - Rear Left or Rear Right
Dorman 630-224 Rear Axle Shaft for Ford Trucks
Dorman 630-224 is a direct replacement drive axle shaft for select Ford Bronco, F-150, and F-100 applications. It is built for rear left and rear right positions and is supplied with application-specific installation components for the listed vehicles.
Key Features
- Direct replacement axle shaft for select Ford rear axle applications
- Solid shaft axle construction in carbon steel
- 31 spline axle shaft with 31.83 in length
- 5-hole axle design with 5 wheel lug pattern
- Package contents include axle shaft, wheel studs, and wheel nuts
- ABS tone ring not included
Detailed Description
This Dorman drive axle shaft is engineered for rear axle service on 1976-1986 Ford Bronco, Ford F-150, and Ford F-100 models listed below. It replaces the original equipment axle shaft on vehicles with the specified axle codes and 9 in. ring gear applications, helping restore proper rear-wheel drive function when the original shaft is damaged or the bearings are worn. This part cross-references Monroe Shocks & Struts (e.g., AXK216, D6TZ4234A) for the same application.
Built from carbon steel and configured as a solid shaft axle, Dorman 630-224 is made to match the OE-style fitment requirements of the covered Ford rear axle assemblies. The part number 630-224 is a practical choice when servicing a worn or damaged rear axle shaft on a classic Ford Bronco or Ford F-150, as well as select Ford F-100 trucks.
What It Helps Fix
- Broken or bent rear axle shaft
- Noise or vibration related to worn axle shaft components
- Rear wheel drive issues caused by axle shaft damage
- Service needs after bearing wear in the rear axle assembly
- Restoration work on select Ford Bronco, F-150, and F-100 rear axles
Installation Notes and Tips
Verify axle code, ring gear size, position, and year before ordering. Fits 1980-1986 Ford Bronco, rear left and rear right, with the listed axle codes and 9 in. ring gear. Fits 1980-1986 Ford F-150, rear left and rear right, with the listed axle codes and 9 in. ring gear. Fits 1980-1983 Ford F-100, rear left and rear right, with the listed axle codes and 9 in. ring gear. Fits 1978-1979 Ford Bronco, rear left and rear right. Fits 1976-1979 Ford F-150, rear left and rear right. Confirm spline count and wheel lug configuration during service, and inspect related bearings and seals before reassembly.
Quality Assurance
Dorman manufactures replacement drivetrain components to meet the fitment and service requirements of the listed applications. Part number 630-224 is built as an OE-style replacement for the specified Ford rear axle setups.
| Brand | Dorman |
|---|---|
| Part Number | 630-224 |
| ABS Tone Ring Installed | Not Included |
| Axle Type | Solid Shaft Axle |
| Length (In) | 31.83 in |
| Material | Carbon Steel |
| Package Contents | Axle Shaft; Wheel Studs and Wheel Nuts |
This part fits 48 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1986 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1986 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1986 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1986 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1985 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1985 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1985 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1985 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1984 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1984 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1984 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1984 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | F-100 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | F-100 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1983 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | F-100 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | F-100 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1982 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | F-100 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | F-100 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1981 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | Bronco | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | Bronco | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | F-100 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | F-100 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | F-150 | Rear Left | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1980 | Ford | F-150 | Rear Right | Includes Bearing; Axle Code WDM-CC1, CF, CF1, CL, DB, DB1, or DD; Axle Code WFE-AV or WFE-BE; 9 In. Ring Gear |
| 1979 | Ford | Bronco | Rear Left | Includes Bearing |
| 1979 | Ford | Bronco | Rear Right | Includes Bearing |
| 1979 | Ford | F-150 | Rear Left | Includes Bearing |
| 1979 | Ford | F-150 | Rear Right | Includes Bearing |
| 1978 | Ford | Bronco | Rear Left | Includes Bearing |
| 1978 | Ford | Bronco | Rear Right | Includes Bearing |
| 1978 | Ford | F-150 | Rear Left | Includes Bearing |
| 1978 | Ford | F-150 | Rear Right | Includes Bearing |
| 1977 | Ford | F-150 | Rear Left | Includes Bearing |
| 1977 | Ford | F-150 | Rear Right | Includes Bearing |
| 1976 | Ford | F-150 | Rear Left | Includes Bearing |
| 1976 | Ford | F-150 | Rear Right | Includes Bearing |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
