Home› Driveline and Axles > Axle Shaft› Dorman 630-320 Drive Axle Shaft - Rear Right
Dorman 630-320 Drive Axle Shaft - Rear RightOE Quality 60-Day Returns
Part #: 630-320

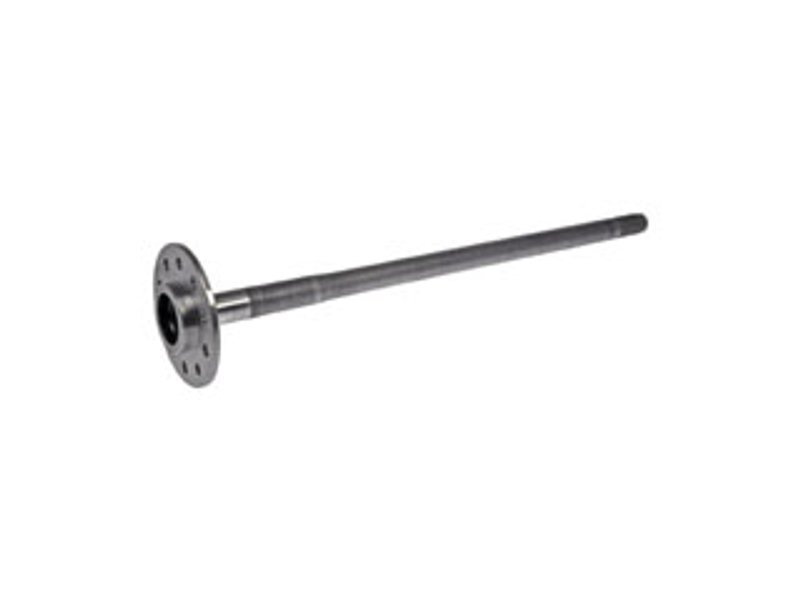

Dorman 630-320 Drive Axle Shaft - Rear Right

Rear Right
8 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$234.80Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Ford, F-150 Heritage, F-150, and Lobo
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Drive Axle Shaft options

Rear Right Axle Shaft for Ford F-150

This Dorman axle shaft is a direct replacement for the original equipment on select Ford F-150 and Ford F-150 Heritage rear right applications. Dorman 630-320 is built for vehicles with a semi-floating axle and 9.75 in. ring gear, making it a focused OE-style solution for axle shaft damage or worn bearings.

Key Features

  • Direct replacement axle shaft for select rear right applications
  • Solid shaft axle construction in carbon steel
  • 34-spline design for the specified driveline setup
  • Includes axle shaft, wheel studs, wheel nuts, bearing, and seal
  • ABS tone ring not included
  • 10-hole, 10-lug wheel configuration

Detailed Product Overview

Dorman 630-320 is engineered for 1997-2003 Ford F-150 and 2004 Ford F-150 Heritage models in the rear right position with a semi-floating axle and 9.75 in. ring gear. It is also cross-referenced to F75Z4234MA and YL3Z4234CA for the same application. The axle shaft measures 31.72 in. and uses a 34-spline, solid shaft design made from carbon steel for the specified rear axle setup.

For buyers searching for a 1997-2003 Ford F-150 rear right axle shaft or a 2004 Ford F-150 Heritage rear right axle shaft, this part provides the correct application-specific components needed for the repair. Dorman 630-320 is a practical replacement when the axle shaft is damaged or the bearings are worn.

Common Repair Reasons

  • Broken or bent rear axle shaft
  • Noise or vibration from worn axle bearings
  • Oil leakage at the axle seal area
  • Wheel stud or wheel nut service after axle damage
  • Restoring rear driveline function on Ford F-150 and Ford F-150 Heritage trucks

Installation Notes

Verify rear right fitment by matching the vehicle year, model, semi-floating axle design, 9.75 in. ring gear, and axle tag number before installation. Confirm the 34-spline count and 10-hole wheel configuration against the original part. This axle shaft is intended for the listed Ford F-150 and Ford F-150 Heritage applications only.

Quality Assurance

Dorman supplies direct replacement driveline components that follow the original equipment application for the listed vehicles. Part number 630-320 is built to match the specified axle configuration and includes the application-specific service components listed above.

BrandDorman
Part Number630-320
ABS Tone Ring InstalledNot Included
Axle TypeSolid Shaft Axle
Length (In)31.72 in
MaterialCarbon Steel
Package ContentsAxle Shaft; Wheel Studs; Wheel Nuts; Bearing and Seal

This part fits 8 vehicles. Search below:

YearMakeModelPositionNotes
2004FordF-150 HeritageRear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
2003FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
2002FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
2001FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
2000FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
1999FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
1998FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F
1997FordF-150Rear RightSemi-Floating Axle; 9.75 In. Ring Gear; Tag No. V916A, V916B, V916C, 916B, 916C, 918E, 918F, or 919F

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

F75Z4234MAYL3Z4234CA

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
