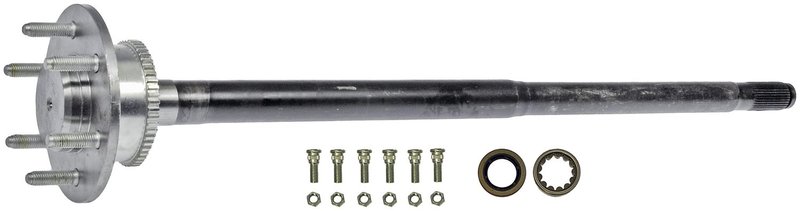

Dorman 630-329 Drive Axle Shaft - Rear Left
Durable Drive Axle Shaft for Ford F-150
The Dorman 630-329 drive axle shaft is engineered for reliable performance on Ford F-150 trucks. Designed as a solid shaft axle with an integrated ABS tone ring, this axle shaft ensures precise wheel speed sensor readings and consistent driveline operation.
- Compatible with Ford F-150 models
- Solid shaft axle design for strength and durability
- Includes ABS tone ring for accurate sensor feedback
- 34.75 inches in length with 34 splines
- Constructed from carbon steel for long-lasting use
- Comes with wheel studs, wheel nuts, and bearing
- Features 6 holes and 6 wheel lugs for secure fitment
Technical Specifications and Features
The Dorman 630-329 drive axle shaft is crafted from carbon steel, providing the necessary toughness to withstand the demands of heavy-duty use in Ford F-150 trucks. Measuring 34.75 inches in length, this solid shaft axle features 34 splines to ensure a precise fit and smooth power transfer. The integrated ABS tone ring supports the vehicle’s anti-lock braking system by delivering accurate wheel speed data. Additionally, the axle shaft includes six holes and six wheel lugs, matching the factory specifications for secure installation. The package also contains essential components such as wheel studs, wheel nuts, and a bearing to facilitate a complete and reliable replacement.
Applications and Problem Resolution
- Replacement for worn or damaged drive axle shafts on Ford F-150
- Restores proper ABS sensor function with installed tone ring
- Addresses issues related to axle shaft wear, such as vibrations or noise
- Solves wheel lug or stud damage affecting wheel security
- Corrects driveline performance problems caused by spline wear
Installation Notes and Tips
Installation of the Dorman 630-329 drive axle shaft requires standard mechanical tools and knowledge of driveline components. Ensure the vehicle is securely lifted and supported before beginning work. Verify that the ABS tone ring is properly aligned to maintain sensor accuracy. Use the included wheel studs and nuts to secure the wheel assembly, tightening to manufacturer torque specifications. It is recommended to inspect related components such as bearings and seals during installation to prevent future issues.
Quality Assurance and Warranty
Dorman manufactures the 630-329 drive axle shaft to meet or exceed OEM standards for fit, form, and function. The use of carbon steel material and precise engineering supports durability and reliable performance. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship to provide confidence in the product’s quality.
| Brand | Dorman |
|---|---|
| Part Number | 630-329 |
| ABS Tone Ring Installed | Yes |
| Axle Type | Solid Shaft Axle |
| Length (In) | 34.75 in |
| Material | Carbon Steel |
| Package Contents | Axle Shaft; ABS Tone Ring; Wheel Studs; Wheel Nuts; Bearing and Seal |
This part fits 49 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Ford | F-150 | FX4 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | Tremor | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | Limited | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | FX2 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | Platinum | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | Rear Left | Base Payload Package; 9.75 In. Ring Gear; Base Submodel | |
| 2014 | Ford | F-150 | STX | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | XL | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | XLT | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | King Ranch | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2014 | Ford | F-150 | Lariat | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | FX4 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | Limited | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | FX2 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | Platinum | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | STX | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | XL | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | XLT | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | King Ranch | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2013 | Ford | F-150 | Lariat | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | FX4 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | FX2 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | Platinum | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | STX | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | XL | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | XLT | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | Harley-Davidson Edition | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | King Ranch | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2012 | Ford | F-150 | Lariat | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | FX4 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | FX2 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | Platinum | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | STX | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | Lariat Limited | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | XL | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | XLT | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | Harley-Davidson Edition | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | King Ranch | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2011 | Ford | F-150 | Lariat | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | FX4 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | FX2 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | Platinum | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | STX | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | XL | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | XLT | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | Harley-Davidson Edition | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | King Ranch | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2010 | Ford | F-150 | Lariat | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
| 2009 | Ford | F-150 | Rear Left | Base Payload Package; 9.75 In. Ring Gear |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
