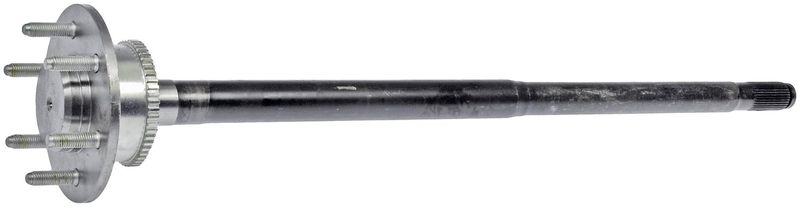

Dorman 630-329A Drive Axle Shaft - Rear Left
| Brand | Dorman 630-329A |
|---|---|
| Position | Rear Left |
| Wheel Bolt Pattern Size | 6 x 135 |
| Wheel Bolt Pattern Size | 6 x 135 mm |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 34 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | Oui |
| ABS Tone Ring Included | Sí |
| ABS Tone Ring Included | Yes |
| Differential Case Design Type | S9.75 |
| ABS Tone Ring Installed | Oui |
| ABS Tone Ring Installed | Yes |
| Anillo del tono del ABS instalado | Sí |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | 1 anillo de tono abs |
| Diameter | 35.3 mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 6 |
| Length (In) | 34.75 in |
| Longitud (in) | 34.75 in |
| Material | Acero al carbono |
| Material | Carbon steel |
| Fits | Ford · 12 vehicles |
Direct replacement. Matches original equipment layout for a precise service fit.
Solid steel shaft. Carbon steel construction with a galvanized finish for corrosion resistance.
ABS tone ring installed. Supports the wheel speed signal setup on equipped applications.
Cross-references 9L3Z4234D for the same application. See all 1.
Overview
This Dorman drive axle shaft is a direct replacement for the original equipment on select trucks with rear left fitment. It addresses axle shaft damage or worn bearings with an application-specific design for a precise service replacement. Part number 630-329A is built for Ford F-150 and Ford Lobo applications listed below.
Key Features
- Direct replacement axle shaft for select rear axle applications.
- Solid shaft axle construction with carbon steel material.
- Galvanized finish for added corrosion resistance.
- Includes an ABS tone ring installed on the shaft.
- 34-spline inboard design with a 6 x 135 mm wheel bolt pattern.
Detailed Description
Designed as a service replacement, this axle shaft follows the original equipment layout for compatible Ford F-150 and Ford Lobo models. The 34.75-inch length, solid axle type, and carbon steel construction support a direct-fit repair where the original shaft has been damaged or the bearings are worn. Part number 630-329A also includes an installed ABS tone ring, which is important for maintaining the vehicle's wheel speed signal setup.
This part cross-references Ford OE number 9L3Z4234D for the same application.
What It Is Used For
- Replacing a damaged rear axle shaft.
- Restoring proper wheel speed sensor tone ring function.
- Addressing wear related to axle shaft and bearing service.
- Returning the driveline to original equipment dimensions and spline count.
Installation Notes and Tips
Fits 2009-2014 Ford F-150, rear left. Fits 2009-2014 Ford Lobo, rear left. This axle shaft does not include the bearing, seal, or hardware, so those service items must be sourced separately if needed. Verify spline count, bolt pattern, and axle length before installation to confirm the correct application.
Quality Assurance
Dorman manufactures direct replacement components engineered to match original equipment fit and function for specific applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Ford | F-150 | FX4 | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2014 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2013 | Ford | F-150 | FX4 | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2013 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2012 | Ford | F-150 | FX4 | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2012 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2011 | Ford | F-150 | FX4 | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2011 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2010 | Ford | F-150 | FX4 | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2010 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2009 | Ford | F-150 | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2009 | Ford | Lobo | — | Rear Left | Does Not Include Bearing, Seal, or Hardware |
