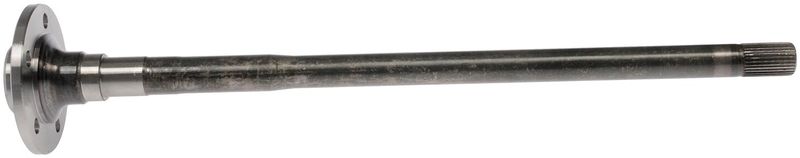

Dorman 630-333A Drive Axle Shaft - Rear Left
| Brand | Dorman 630-333A |
|---|---|
| Position | Rear Left |
| Wheel Bolt Pattern Size | 5 x 4.5 |
| Wheel Bolt Pattern Size | 5 x 4.5 in |
| Wheel Bolt Pattern Size | 5 x 4.5 in. |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 30 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | No |
| ABS Tone Ring Included | Non |
| Differential Case Design Type | Dana 44 |
| ABS Tone Ring Installed | No |
| ABS Tone Ring Installed | Non |
| Anillo del tono del ABS instalado | No |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | Eje axial |
| Diameter | 38.1 mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 5 |
| Length (In) | 29.24 in |
| Length (In) | 29.24 in. |
| Longitud (in) | 29.24 in. |
| Material | Acero al carbono |
| Fits | Jeep · 32 vehicles |
Direct replacement. Replaces the original axle shaft on select applications for straightforward service.
Solid shaft design. Carbon steel construction with a galvanized finish for driveline durability.
Application-specific fit. Configured with 30 splines and a 5 x 4.5 wheel bolt pattern.
Cross-references 4882351 for the same application. See all 1.
Overview
This Dorman drive axle shaft, part number 630-333A, directly replaces the original equipment axle shaft on select Jeep applications. It is built for rear left fitment and uses a solid shaft axle design with a galvanized carbon steel construction for service in demanding driveline conditions.
Compatible with Jeep Wrangler, Jeep Cherokee, Jeep Comanche, and Jeep Wagoneer applications listed below, this axle shaft is specified with a 5 x 4.5 wheel bolt pattern, 30 inboard splines, and a Dana 44 differential case design type. Part number 630-333A is a direct replacement for the original axle shaft on the listed vehicles.
Key Features
- Direct replacement axle shaft for select Jeep driveline applications
- Solid shaft axle construction in carbon steel
- Galvanized finish for added corrosion resistance
- 30 inboard splines and 5 x 4.5 wheel bolt pattern
- Designed for rear left installation on listed vehicles
- Compatible with Dana 44 differential case design type
Detailed Description
Dorman 630-333A is a drive axle shaft engineered to replace the original equipment shaft on specific Jeep models. The shaft uses a solid axle design with carbon steel construction and a galvanized finish, and it is configured with 30 inboard splines, 5 wheel lugs, and a 5 x 4.5 bolt pattern. This part number 630-333A is listed for rear left applications on Jeep Wrangler, Cherokee, Comanche, and Wagoneer models with the specified fitment.
This axle shaft is a practical replacement when the original shaft is damaged or when axle bearings are worn. It cross-references Monroe Shocks & Struts (e.g., 4882351) for the same application.
What It Is Used For
- Replacing a damaged rear axle shaft
- Restoring driveline function after axle wear
- Addressing noise or vibration related to shaft damage
- Correcting fitment issues tied to worn axle components
Installation Notes and Tips
Review the vehicle notes before ordering. Some listed applications do not include bearing, seal, or hardware, and the 2003-2006 Jeep Wrangler application is noted for Tru-Lok rear axle use. Confirm the axle shaft dimensions, spline count, and bolt pattern against the original part before installation.
Quality Assurance
Dorman designs this axle shaft as a direct OE-style replacement for the listed applications. Verify fitment by year, make, model, and rear left position to ensure proper installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Jeep | Wrangler | Rear Left | Tru-Lok Rear Axle |
| 2005 | Jeep | Wrangler | Rear Left | Tru-Lok Rear Axle |
| 2004 | Jeep | Wrangler | Rear Left | Tru-Lok Rear Axle |
| 2003 | Jeep | Wrangler | Rear Left | Tru-Lok Rear Axle |
| 2002 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2001 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 2000 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1999 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1998 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1997 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1992 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1992 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1992 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1991 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Jeep | Wagoneer | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1990 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | Jeep | Wagoneer | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1989 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1988 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1988 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1988 | Jeep | Wagoneer | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1988 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1987 | Jeep | Cherokee | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1987 | Jeep | Comanche | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1987 | Jeep | Wagoneer | Rear Left | Does Not Include Bearing, Seal, or Hardware |
| 1987 | Jeep | Wrangler | Rear Left | Does Not Include Bearing, Seal, or Hardware |
