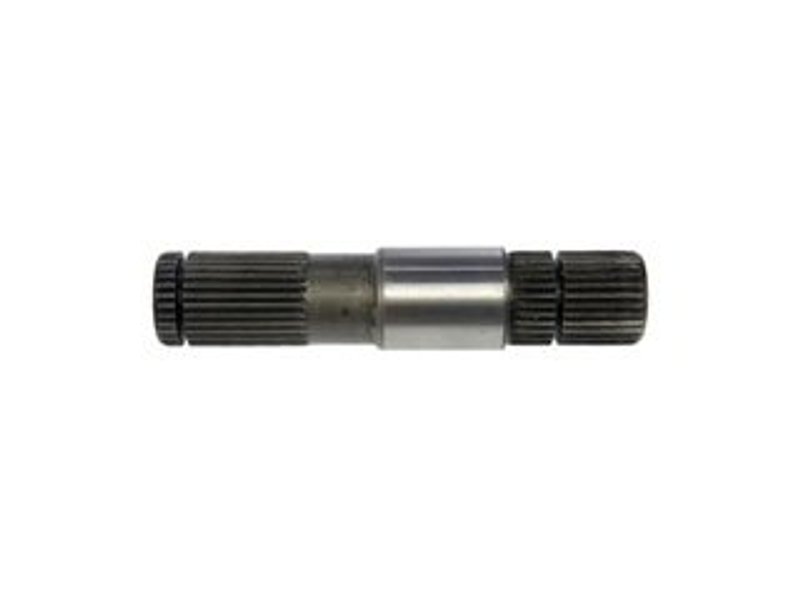

Dorman 630-416 Drive Axle Shaft Assembly - Front Left Inner

Reliable Drive Axle Shaft Assembly for Chrysler, Dodge, Mitsubishi, and Ram

The Dorman 630-416 Drive Axle Shaft Assembly is engineered to meet the specific requirements of select Chrysler, Dodge, Mitsubishi, and Ram models. Designed for durability and precise fitment, this axle shaft assembly supports smooth driveline operation and vehicle performance.

• Compatible with Chrysler 1500, Dodge Aspen, Dakota, Durango, Ram 1500, and Mitsubishi Raider
• Wheel bolt pattern size: 6x114 for secure wheel mounting
• Constructed from carbon steel for strength and longevity
• Inboard and outboard spline quantity: 29 splines each for proper engagement
• Shaft diameter of 1.2 inches ensures robust driveline support
• Compressed and overall length of 6.26 inches for accurate fitment
• Wheel stud thread diameter 0.562 inches with 18 thread pitch
• Does not include ABS tone ring, wheel studs, brake hardware, or hub bearing

Detailed Drive Axle Shaft Features and Specifications

This Dorman drive axle shaft assembly (part number 630-416) is manufactured from carbon steel, providing the necessary strength to handle torque and rotational forces in the driveline system. The axle shaft features 29 splines on both the inboard and outboard ends, ensuring a secure connection to the differential and wheel hub. With a shaft diameter of 1.2 inches and a compressed length of 6.26 inches, this axle shaft is designed to fit vehicles with an independent front suspension (IFS) differential case design. The 6x114 wheel bolt pattern size and wheel stud thread specifications (0.562 inch diameter, 18 pitch) align with the factory standards for the compatible Chrysler, Dodge, Mitsubishi, and Ram models listed.

Applications and Common Issues Addressed

• Replacement for worn or damaged axle shafts causing driveline vibrations
• Fixes axle shaft failures resulting in clicking or clunking noises during turns
• Restores proper wheel alignment and rotational stability
• Addresses axle shaft wear that leads to uneven tire wear or handling issues
• Supports repair of axle shaft damage from road debris or off-road use

Installation Notes and Tips

Installation of the Dorman 630-416 axle shaft assembly requires standard mechanical tools and knowledge of driveline components. Ensure the vehicle is securely lifted and supported before removal of the old axle shaft. Verify spline counts and shaft dimensions match the replacement part. Since this assembly does not include wheel studs, ABS tone ring, or brake components, reuse existing hardware or source separately as needed. Proper torque specifications should be followed when tightening wheel bolts and axle components to maintain safety and performance.

Quality Assurance and Warranty Information

Dorman manufactures this axle shaft assembly to meet or exceed OEM specifications for fit, form, and function. The carbon steel construction provides durability under normal operating conditions. While this product does not include additional hardware or coatings, it is designed for reliable service life. Warranty coverage details can be obtained from Dorman or the product distributor to ensure confidence in your purchase.
