Part #: 630-420

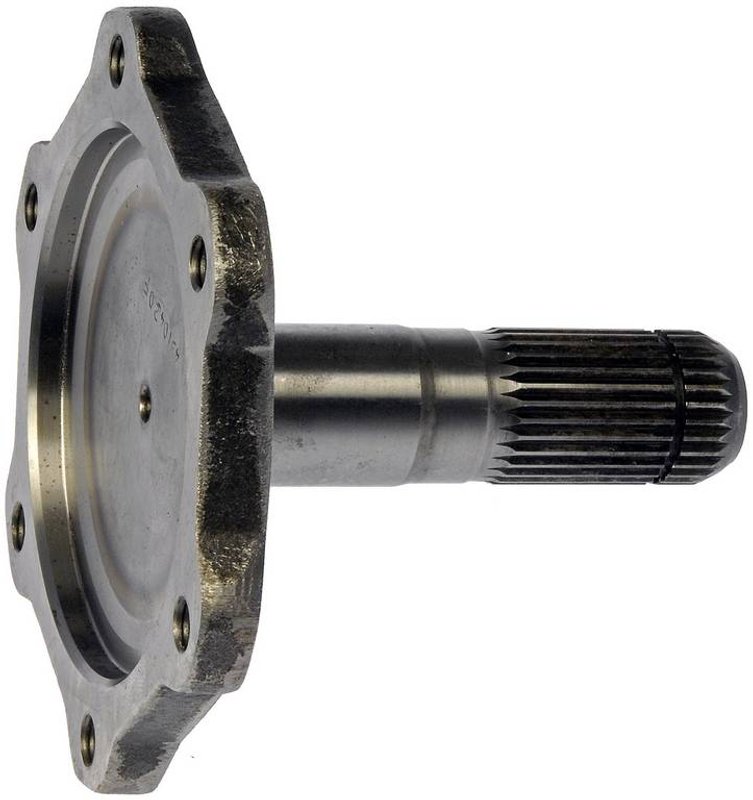

Dorman 630-420 Drive Axle Shaft Assembly - Front Left Inner

Front Left Inner
⚙️ 151 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$282.62Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Cadillac, Chevrolet, and GMC, Escalade, Escalade ESV, Escalade EXT, Avalanche, Silverado 1500, Suburban 1500, Tahoe, Sierra 1500, Yukon, Yukon XL 1500, Silverado 1500 Classic, Silverado 1500 HD Classic, Sierra 1500 Classic, Sierra 1500 HD Classic, Avalanche 1500, Silverado 1500 HD, K1500, and K1500 Suburban
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Drive Axle Shaft Assembly options

Overview of Dorman 630-420 Drive Axle Shaft Assembly

The Dorman 630-420 drive axle shaft assembly is engineered for reliable performance in select GM trucks and SUVs. Designed specifically for models like the Chevrolet Silverado 1500 and GMC Sierra 1500, this axle shaft provides a precise fit and durable construction to maintain driveline integrity.

  • Compatible with 6x5.5 wheel bolt pattern vehicles
  • Constructed from carbon steel for strength and durability
  • Inboard spline quantity: 28 for secure engagement
  • Shaft diameter measures 1.25 inches for proper fitment
  • Designed for independent front suspension (IFS) differential case design
  • Includes outer axle shaft only; no wheel studs or brake components included
  • Compressed and overall length of 5.04 inches

Detailed Product Description

The Dorman 630-420 drive axle shaft assembly is built to meet the specifications required by various Cadillac, Chevrolet, and GMC models, including the Escalade, Tahoe, Yukon XL 1500, and Suburban 1500. This axle shaft features a 6x5.5 wheel bolt pattern size and a 14mm wheel stud thread diameter with a 1.5 thread pitch, ensuring compatibility with factory wheel setups. The shaft is made from carbon steel, providing the necessary strength to handle torque and rotational forces while resisting wear over time. The 28 inboard splines ensure a secure connection to the differential, while the absence of outboard splines and additional components like ABS tone rings or brake hardware means this part is intended as a direct replacement for the outer axle shaft only.

Applications and Common Repair Uses

  • Replacement of worn or damaged outer axle shafts on compatible GM trucks and SUVs
  • Addressing axle shaft failure due to wear, bending, or breakage
  • Restoring driveline performance and eliminating vibrations or noises related to axle issues
  • Repairing axle shaft spline damage that affects power transfer
  • Upgrading to a factory-spec axle shaft during drivetrain rebuilds

Installation Notes and Tips

Installation of the Dorman 630-420 axle shaft assembly requires proper tools and mechanical knowledge. Ensure the vehicle is securely lifted and supported before beginning work. Since this part does not include wheel studs, brake hardware, or seals, reuse existing components or replace them as needed. Verify spline alignment carefully during installation to avoid damage. Torque all fasteners to manufacturer specifications and inspect the axle shaft seal and hub bearing condition during replacement.

Quality Assurance and Warranty Information

Dorman manufactures the 630-420 drive axle shaft assembly to meet or exceed OEM standards for fit, form, and function. The carbon steel construction and precise spline counts contribute to reliable performance. While this product does not include a rust-resistant coating, proper maintenance and inspection are recommended to prolong service life. Warranty coverage details should be confirmed at the point of purchase, as they may vary.

BrandDorman
Part Number630-420
ABS Tone Ring IncludedNo
AdjustableNo
Axle Shaft Seal IncludedNo
Brake Backing Plate IncludedNo
Brake Dust Shield IncludedNo
Brake Hardware IncludedNo
Compressed Length5.04 in
Differential Case Design TypeIFS
Hub Bearing IncludedNo
Inboard Spline Quantity28
Length5.04 in
MaterialCarbon Steel
Outboard Spline Quantity0
Package ContentsOuter Axle Shaft
Rust Resistant CoatingNo
Shaft Diameter1.25
Wheel Bolt Pattern Size6x5.5
Wheel Stud Thread Diameter14
Wheel Stud Thread Pitch1.5
Wheel Studs IncludedNo
