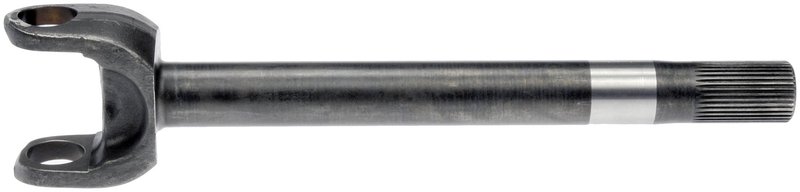

Dorman 630-436 Drive Axle Shaft Assembly - Front Right Inner
Dorman 630-436 Front Right Inner Axle Shaft
This Dorman axle shaft assembly is a direct replacement for the original equipment on select heavy-duty trucks with a Dana 60 front axle. Built from chromoly steel and supplied as an inner and outer axle shaft assembly, it is ready for install on the correct application.
Key Features
- Direct replacement axle shaft assembly for select front right inner applications
- Chromoly steel construction for strength in demanding driveline service
- 35 spline inboard and 35 spline outboard configuration
- Dana 60 differential case design type
- 29.69 in compressed length and overall length
- 8x6.5 wheel bolt pattern size
- Interchange reference: 15521884
- Dorman part number 630-436
Detailed Description
Dorman 630-436 is a replacement drive axle shaft assembly for vehicles using a Dana 60 front axle and a 35-spline setup. It is built to match the original equipment layout for the front right inner position, making it a practical choice for Chevrolet K30, Chevrolet V30, Chevrolet V3500, GMC K3500, and GMC V3500 applications listed below. The chromoly steel shaft construction supports driveline durability, while the OE-style dimensions help maintain proper fitment in the axle assembly.
This part cross-references 15521884 for the same application. Use Dorman 630-436 when replacing a damaged axle shaft or worn axle bearings on the specified Chevrolet and GMC trucks.
Vehicle Fitment
- Fits 1989-1991 Chevrolet V3500, front right inner, Dana 60 axle; 35 spline
- Fits 1987-1991 GMC V3500, front right inner, Dana 60 axle; 35 spline
- Fits 1987-1988 Chevrolet V30, front right inner, Dana 60 axle; 35 spline
- Fits 1977-1986 Chevrolet K30, front right inner, Dana 60 axle; 35 spline
- Fits 1979-1986 GMC K3500, front right inner, Dana 60 axle; 35 spline
Common Repair Uses
- Replacing a bent or broken front axle shaft
- Correcting noise or vibration caused by worn axle components
- Restoring driveline function after axle shaft damage
- Addressing wear in a Dana 60 front axle assembly
- Repairing front right inner axle issues on heavy-duty Chevrolet and GMC trucks
Installation Notes and Tips
Verify Dana 60 axle configuration, 35-spline count, wheel bolt pattern, and front right inner position before installation. Confirm shaft length and spline engagement against the original part to ensure proper fit on Chevrolet K30, Chevrolet V30, Chevrolet V3500, GMC K3500, and GMC V3500 models. Inspect related axle seals, bearings, and hub components during service, since those items are not included with this assembly.
Quality Assurance
Dorman manufactures replacement driveline components to match original equipment specifications for the listed applications. This axle shaft assembly is built for direct replacement use on the confirmed vehicle fitments.
| Brand | Dorman |
|---|---|
| Part Number | 630-436 |
| Wheel Bolt Pattern Size | 8x6.5 |
| Rust Resistant Coating | No |
| Wheel Studs Included | No |
| Inboard Spline Quantity | 35 |
| Outboard Spline Quantity | 35 |
| ABS Tone Ring Included | No |
| Shaft Diameter | 1.57 |
| Differential Case Design Type | Dana 60 |
| Wheel Stud Thread Diameter | 0.562 |
| Brake Hardware Included | No |
| Wheel Stud Thread Pitch | 18 |
| Brake Dust Shield Included | No |
| Brake Backing Plate Included | No |
| Axle Shaft Seal Included | No |
| Hub Bearing Included | No |
| Adjustable | No |
| Compressed Length | 29.69 in |
| Length | 29.69 in |
| Material | Chromoly steel |
| Package Contents | Inner axle shaft; outer axle shaft |
This part fits 28 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | Chevrolet | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1991 | GMC | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1990 | Chevrolet | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1990 | GMC | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1989 | Chevrolet | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1989 | GMC | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1988 | Chevrolet | V30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1988 | GMC | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1987 | Chevrolet | V30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1987 | GMC | V3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1986 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1986 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1985 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1985 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1984 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1984 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1983 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1983 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1982 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1982 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1981 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1981 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1980 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1980 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1979 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1979 | GMC | K3500 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1978 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
| 1977 | Chevrolet | K30 | Front Right Inner | Dana 60 Axle; 35 Spline |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
