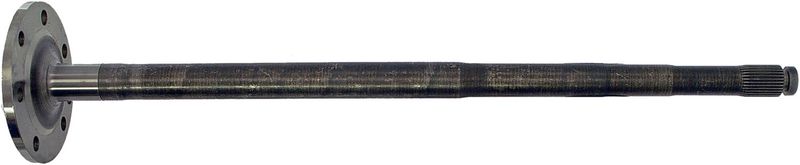

Dorman 630-616A Drive Axle Shaft - Rear Right
| Brand | Dorman 630-616A |
|---|---|
| Position | Rear Right |
| Wheel Bolt Pattern Size | 7 x 150 mm |
| Wheel Studs Included | No |
| Wheel Studs Included | Non |
| Retainer Included | No |
| Retainer Included | Non |
| Inboard Spline Quantity | 35 |
| Outboard Spline Quantity | 0 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| ABS Tone Ring Included | No |
| ABS Tone Ring Included | Non |
| Differential Case Design Type | S10.25 |
| ABS Tone Ring Installed | No |
| ABS Tone Ring Installed | Non |
| Anillo del tono del ABS instalado | No |
| Axle Type | Eje axial sólido |
| Axle Type | Solid shaft axle |
| Contenidos del paquete | Eje axial |
| Diameter | 39 mm |
| Diameter | 39mm |
| Finish | Galvanizado |
| Finish | Galvanized |
| Hole Quantity | 7 |
| Length (In) | 35.25 in |
| Longitud (in) | 35.25 in |
| Material | Acero al carbono |
| Material | Carbon steel |
| Minimum Length | 35.25 in |
| Fits | Ford · 9 vehicles |
Direct replacement. Matches the original axle shaft configuration for select applications.
Solid shaft design. Carbon steel construction with a galvanized finish for service durability.
Application-specific fit. Built to the listed spline count, length, and bolt pattern.
Cross-references 4L3Z4234BA for the same application. See all 1.
Drive axle shaft replacement
This Dorman drive axle shaft is a direct replacement for the original equipment on select Ford truck applications. It is built for rear right fitment and matches the axle shaft configuration used on the listed vehicles, including the 7 x 150 mm wheel bolt pattern and 35-spline design.
Key features
- Direct replacement axle shaft for select Ford F-150 and Ford Lobo applications.
- Solid shaft axle construction with carbon steel material and galvanized finish.
- 35.25-inch length with 39 mm diameter for application-specific fitment.
- 7-lug wheel pattern and 35 inboard splines for the listed rear axle applications.
- Part number 630-616A for easy identification.
Detailed description
When an axle shaft is damaged or the bearings are worn, this replacement restores the original axle shaft configuration on compatible Ford F-150 and Ford Lobo models. Dorman 630-616A is engineered as a direct OE-style replacement and follows the application-specific dimensions and spline count required for the listed rear right positions. The galvanized carbon steel construction adds corrosion resistance, while the solid shaft design supports dependable driveline service. This part cross-references Ford 4L3Z4234BA for the same application.
Common issues this part addresses
- Damaged axle shaft from wear or impact.
- Noise or vibration related to axle shaft condition.
- Loss of driveline function from a worn rear axle assembly.
- Fitment problems caused by incorrect spline count or bolt pattern.
Installation notes and tips
Fits 2008 Ford F-150, rear right. Fits 2008 Ford Lobo, rear right. Fits 2004-2007 Ford F-150, rear right. Fits 2005-2007 Ford Lobo, rear right. Verify the rear right application, axle dimensions, spline count, and wheel bolt pattern before installation. The fitment notes for some applications state that bearing, seal, and hardware are not included, so confirm the condition of related components during service.
Quality assurance
Built by Dorman as a direct replacement axle shaft for the specified applications, with application-specific installation components referenced in the manufacturer description.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Ford | F-150 | Rear Right | To 8/18/08 |
| 2008 | Ford | Lobo | Rear Right | To 8/18/08 |
| 2007 | Ford | F-150 | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2007 | Ford | Lobo | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2006 | Ford | F-150 | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2006 | Ford | Lobo | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2005 | Ford | F-150 | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2005 | Ford | Lobo | Rear Right | Does Not Include Bearing, Seal, or Hardware |
| 2004 | Ford | F-150 | Rear Right | Does Not Include Bearing, Seal, or Hardware |
