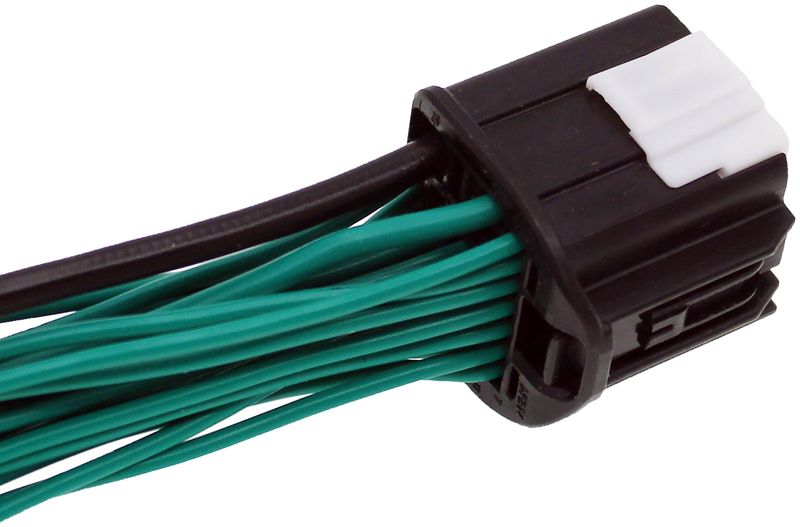

Dorman 645-117 Sunroof Motor Connector
| Brand | Dorman 645-117 |
|---|---|
| Color | Black |
| Color | Blanco |
| Color | Green |
| Color | Negro |
| Color | Verde |
| Color | White |
| Gender | Female |
| Gender | Hembra |
| Wiring Harness Length | 13 |
| Wire Gauge Measurement | 14 ga |
| Wire Gauge Measurement | 16 ga |
| Wire Gauge Measurement | 20 ga |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Shape | Half circle |
| Wire Quantity | 21 |
| Terminal Quantity | 21 |
| Terminal Gender | Female |
| Terminal Gender | Hembra |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Longitud total | 13 in |
| Overall Length | 13 in |
| Package Contents | 1 pigtail |
| Package Contents | 17 20 ga butt connectors |
| Package Contents | 21 heat shrink tube |
| Package Contents | 4 14 ga butt connectors |
| Terminal Material | Brass |
| Terminal Material | Plastic |
| Terminal Material | Plástico, bronce |
| Fits | Ford and Lincoln · 11 vehicles |
OE-style repair part. Female pigtail connector for electrical repairs and accessory installations.
Service-friendly design. Allows quick circuit disconnections during maintenance and repair work.
Brass terminal contact. Built for dependable electrical connection in the harness.
Cross-references Standard Ignition S2995, FU2Z14S411RA and FU2Z14S411RB for the same application. See all 4.
Sunroof Motor Connector Overview
This Dorman sunroof motor connector is a female pigtail connector built for electrical repairs and accessory installations. It provides a quick way to disconnect circuits for service and is engineered for reliable performance. Part number 645-117 is a practical replacement for vehicles that use a 21-cavity connector layout.
Key Features
- Female connector design for sunroof motor electrical repair
- 21-cavity layout for the specified application
- 13-inch harness length for service and replacement work
- 14, 16, and 20 gauge wire support
- Brass terminal material for dependable electrical contact
- Black, white, and green connector color references
Detailed Description
Dorman 645-117 is a sunroof motor connector pigtail intended for direct electrical service work where the original connector is damaged, worn, or no longer makes a secure connection. The half-circle connector shape, female terminal design, and 21-wire configuration match the needs of the listed applications. This part number 645-117 is listed for 2020-2024 Ford Escape, 2020-2024 Lincoln Corsair, and 2023 Ford Ranger with a 21-cavity connector requirement. This part cross-references Standard Ignition S2995 for the same application.
What It Is Used For
- Replacing a damaged sunroof motor connector
- Restoring electrical continuity at the connector interface
- Repairing broken or worn terminals in the harness
- Supporting service disconnects during electrical work
- Addressing connector issues on 21-cavity sunroof motor circuits
Installation Notes and Tips
Verify the connector cavity count, terminal style, and harness length before installation. Match the wire gauge and terminal layout to the original connector to ensure proper fitment and electrical contact. Use standard electrical repair practices when splicing and sealing the harness.
Quality Assurance
Dorman engineers this pigtail connector for reliable performance in electrical repair applications. The brass terminal construction and service-oriented design support consistent circuit connection in the specified fitments.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2024 | Ford | Escape | 21 Cavity |
| 2024 | Lincoln | Corsair | 21 Cavity |
| 2023 | Ford | Escape | 21 Cavity |
| 2023 | Ford | Ranger | 21 Cavity |
| 2023 | Lincoln | Corsair | 21 Cavity |
| 2022 | Ford | Escape | 21 Cavity |
| 2022 | Lincoln | Corsair | 21 Cavity |
| 2021 | Ford | Escape | 21 Cavity |
| 2021 | Lincoln | Corsair | 21 Cavity |
| 2020 | Ford | Escape | 21 Cavity |
| 2020 | Lincoln | Corsair | 21 Cavity |
