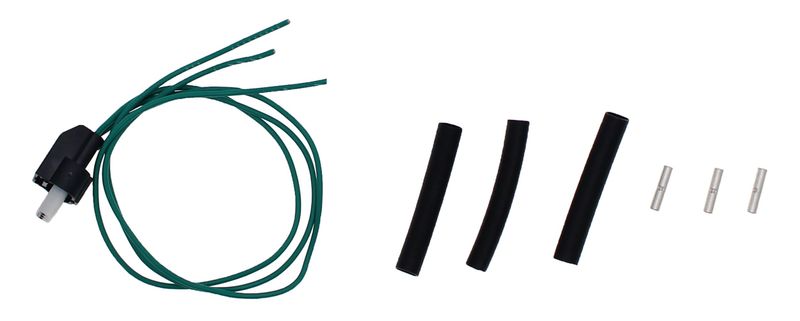

Dorman 645-247 Engine Oil Pressure Sensor Connector - Front or Intake

Overview

Dorman 645-247 is an engine oil pressure sensor connector pigtail built for electrical repair work and accessory installations. It provides a direct way to restore a damaged connector and supports quick circuit disconnection during service.

Compatible with a wide range of Ford and Lincoln applications, including many 3-cavity oil pressure sensor connector setups. Fits 2017-2025 Ford Escape, N/A; Fits 2018-2025 Ford Expedition, N/A; Fits 2020-2025 Ford Explorer, N/A; Fits 2018-2025 Ford F-150, N/A; Fits 2020-2025 Lincoln Aviator, N/A.

Key Features

• Engine oil pressure sensor connector pigtail for electrical repair
• 3-wire, 3-terminal design for 3-cavity applications
• 12.4-inch harness length with 18-gauge wire
• Female blade terminals and oval rectangular connector shape
• Black, white, and green wire color coding for circuit identification

Detailed Description

This Dorman connector is intended for service technicians and do-it-yourself repairs where the original oil pressure sensor connector is damaged, corroded, or no longer locks in securely. The pigtail format allows the connector end to be replaced without rebuilding the entire harness section, and the 18-gauge leads provide a practical match for common sensor wiring repairs. Part number 645-247 is listed across many Ford and Lincoln models, including Ford Bronco Sport, Ford Mustang, Ford Transit, and Lincoln Nautilus applications with 3-cavity connector requirements.

This part cross-references Monroe Shocks & Struts (e.g., HU2Z14S411BA, WPT1492) for the same application.

What It Helps Fix

• Broken or brittle sensor connector housings
• Corroded or heat-damaged electrical terminals
• Intermittent oil pressure sensor signal loss
• Wiring repairs after connector damage during service
• Failed circuit connection at the sensor plug

Installation Notes

Verify the connector cavity count and terminal style before installation. Match the vehicle harness side and confirm wire routing, polarity, and sealing requirements against the original connector. Use proper electrical repair practices when splicing and heat-shrinking the leads.

Quality Assurance

Dorman engineers this pigtail connector for reliable electrical performance in repair applications. Part number 645-247 is built as a service replacement for common connector failures in Ford and Lincoln oil pressure sensor circuits.
