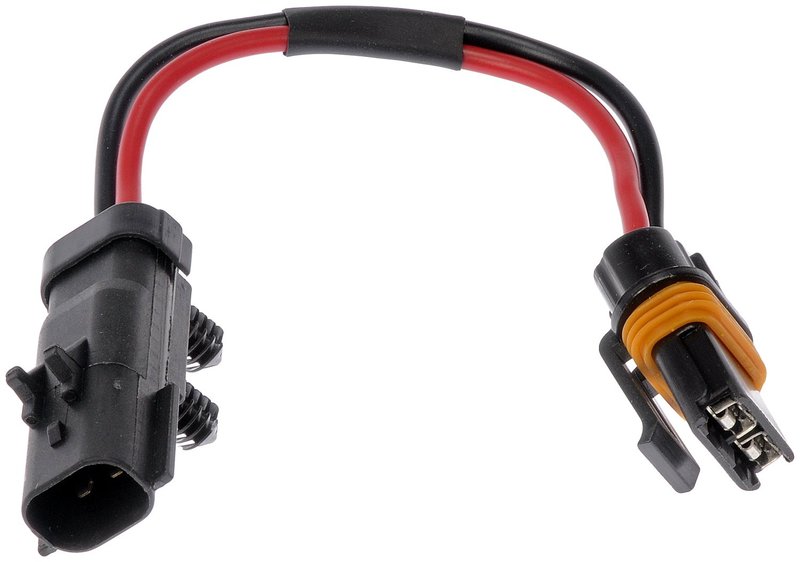

Dorman 645-505 Engine Cooling Fan Motor Wiring Harness

Reliable Engine Cooling Fan Motor Wiring Harness for Dodge Ram

The Dorman 645-505 Engine Cooling Fan Motor Wiring Harness is designed specifically for Dodge Ram 1500, 2500, and 3500 models. This 12-volt wiring harness ensures a secure and efficient electrical connection for your engine cooling fan motor, helping maintain optimal engine temperature.

• Voltage: 12V for standard automotive electrical systems
• Wire Gauge: 12 gauge for reliable current flow
• Wiring Harness Length: 8.75 inches for precise fitment
• Connector Material: Silver plated brass for corrosion resistance
• Connector Shape: Rectangle with male and female terminals
• Connector Color: Black to match factory wiring
• Wire Quantity: 2 wires for proper fan motor operation
• Amperage Rating: 14 amps to handle cooling fan load
• Specific fit for Dodge Ram 1500, 2500, and 3500 models

Durable Wiring Harness Designed for Dodge Ram Cooling Systems

The Dorman 645-505 wiring harness is engineered to meet the electrical demands of the engine cooling fan motor in Dodge Ram trucks. Featuring silver plated brass connectors, this harness offers improved conductivity and resistance to corrosion compared to standard connectors. The 12-gauge wire ensures sufficient amperage capacity, supporting up to 14 amps, which is essential for maintaining consistent fan motor performance. With a length of 8.75 inches, the harness fits precisely within the engine bay, reducing the risk of loose connections or wire damage.

Compatible Applications and Common Use Cases

This engine cooling fan motor wiring harness is compatible with Dodge Ram 1500, 2500, and 3500 models, providing a direct replacement for worn or damaged factory wiring. It is commonly used to address issues such as:

• Intermittent or non-functioning engine cooling fan
• Damaged or corroded wiring connectors causing electrical faults
• Overheating due to poor fan motor power supply
• Loose or broken wiring harness connections
• Electrical shorts or blown fuses related to the cooling fan circuit

Installation Notes and Tips for Dodge Ram Owners

When installing the Dorman 645-505 wiring harness, ensure the vehicle’s battery is disconnected to prevent electrical shorts. The harness features male and female rectangular connectors that match factory terminals for a straightforward plug-and-play installation. Verify the wiring harness length and routing to avoid contact with hot engine components or moving parts. Use dielectric grease on connectors to improve electrical contact and reduce corrosion risk, even though the harness itself is not weather resistant.

Quality Assurance and Warranty Information

Dorman manufactures the 645-505 wiring harness to meet OEM specifications for fit and function on Dodge Ram 1500, 2500, and 3500 trucks. The silver plated brass connectors and 12-gauge wiring provide durability and reliable electrical performance. While this product does not include weather resistance, proper installation and connector maintenance will ensure long service life. Please refer to Dorman’s warranty policy for coverage details.
