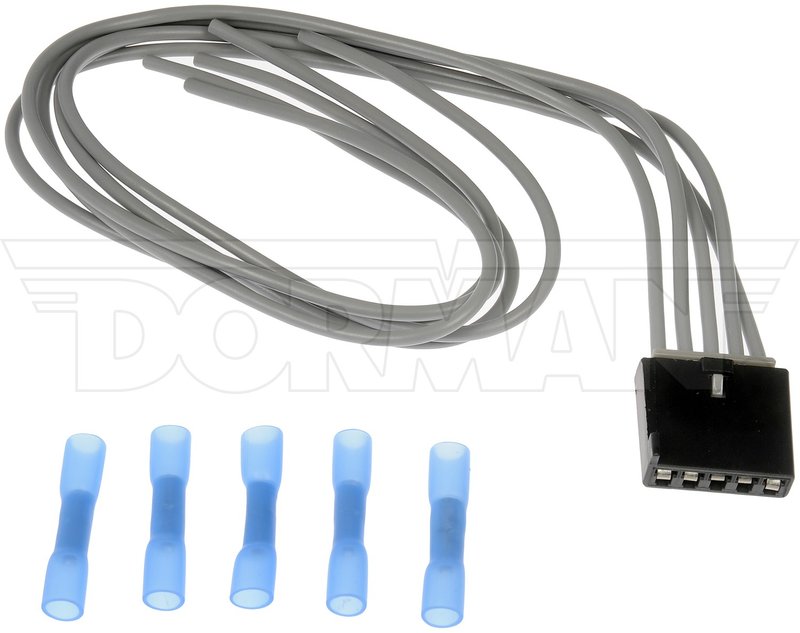

Dorman 645-512 HVAC Blower Motor Resistor Connector

Overview of Dorman HVAC Blower Motor Resistor Connector 645-512

The Dorman 645-512 HVAC blower motor resistor connector is designed to provide a reliable electrical connection for the blower motor resistor in select Buick, Chevrolet, Pontiac, and Saturn vehicles. This female connector features a rectangular shape and is engineered to meet the specific wiring needs of models such as the Buick LaCrosse and Chevrolet Malibu.

• Female gender connector with 5 blade terminals
• Wire gauge measurement of 16 for optimal current flow
• Rectangular shape for secure fitment
• Includes 15.75-inch overall length wiring harness
• Package contains 1 harness and 5 butt connectors for installation
• Metal terminal material ensures durability and conductivity

Detailed Product Description

The Dorman 645-512 connector is a critical component in the HVAC electrical system, specifically designed to interface with the blower motor resistor. It features five female blade terminals that accommodate five wires, each with a 16-gauge measurement to support proper electrical load. The rectangular shape of the connector ensures a precise fit and secure connection, reducing the risk of electrical faults. The included wiring harness measures 15.75 inches in length, providing sufficient reach for installation in vehicles like the Pontiac G6 and Saturn Aura. The metal terminals offer reliable conductivity and resistance to corrosion, contributing to the longevity of the HVAC system.

Compatible Vehicles and Applications

This connector is compatible with a range of Buick, Chevrolet, Pontiac, and Saturn models, including:

• Buick Allure, Century, LaCrosse
• Chevrolet Malibu, Impala, Impala Limited, Monte Carlo
• Pontiac G6, Grand Prix
• Saturn Aura

It is specifically designed to replace the blower motor resistor connector in these vehicles, ensuring proper HVAC blower motor function.

Common Issues Addressed by This Connector

• Intermittent blower motor operation due to faulty connections
• HVAC blower motor resistor failure caused by poor terminal contact
• Electrical shorts or open circuits in the blower motor wiring harness
• Corrosion or wear on original connector terminals
• Loose or damaged wiring connections affecting blower speed control

Installation Notes and Tips

• Ensure the vehicle ignition is off before beginning installation
• Verify the connector matches the original part number 645-512 for compatibility
• Use the included butt connectors to secure wire splices and maintain electrical integrity
• Check for proper terminal seating and secure locking to prevent disconnection
• Inspect wiring harness length and routing to avoid pinching or abrasion

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing dependable performance for HVAC electrical connections. The 645-512 connector is constructed with durable metal terminals and high-quality materials to resist corrosion and wear. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship to ensure customer confidence in the product.
