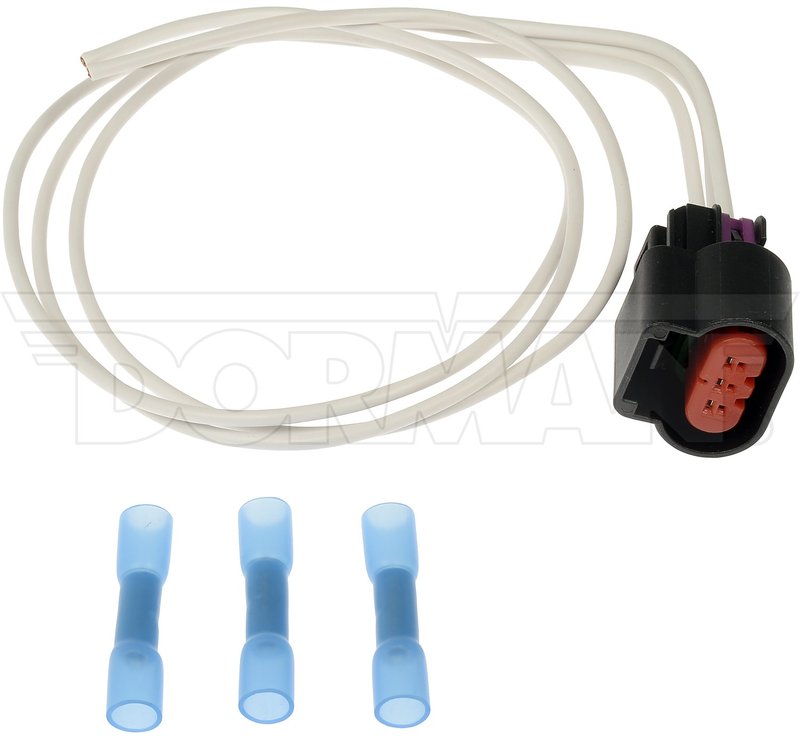

Dorman 645-513 Battery Current Sensor Connector

Reliable Battery Current Sensor Connector for GM Vehicles

The Dorman 645-513 Battery Current Sensor Connector is designed to provide a secure and efficient electrical connection for various GM models including Buick, Cadillac, Chevrolet, and GMC. This connector ensures accurate current sensing and reliable performance in your vehicle's charging and starting system.

• Wiring harness length: 16 inches for flexible installation
• Wire gauge measurement: 16 gauge for optimal current flow
• Terminal type: Blade terminals with tin brass plating for corrosion resistance
• Terminal quantity: 6 terminals ensuring multiple connection points
• Connector and terminal gender: Female for compatibility with sensor components
• Includes 1 harness and 3 butt connectors for secure splicing
• Wire quantity: 3 wires to support sensor signal and power

Technical Details and Compatibility

The Dorman 645-513 connector features a 16-inch overall length wiring harness constructed with 16 gauge wires, providing a balance between flexibility and electrical capacity. The blade-type terminals are made from tin-plated brass, which offers durability and resistance to corrosion, essential for maintaining a stable electrical connection in automotive environments. This female connector is designed to interface directly with battery current sensors on a range of GM vehicles.

Compatible with multiple makes and models such as Buick LaCrosse, Cadillac CTS, Chevrolet Equinox, GMC Sierra, Hummer H2, Oldsmobile Alero, Pontiac G6, and Saturn Vue, this connector supports a wide variety of applications in electrical, charging, and starting systems.

Common Applications and Problem Resolution

• Restores proper battery current sensor connection for accurate charging system readings
• Replaces damaged or corroded connectors causing intermittent electrical faults
• Solves issues related to faulty sensor signals affecting vehicle performance
• Ensures secure wiring harness connections to prevent electrical shorts or disconnections
• Supports diagnostics and repairs in electrical charging and starting circuits

Installation Notes and Tips

When installing the Dorman 645-513 Battery Current Sensor Connector, ensure the wiring harness is routed away from heat sources and moving parts to prevent damage. Use the included butt connectors to splice wires securely, and verify that all blade terminals are fully seated to maintain a reliable connection. It is recommended to inspect the mating sensor terminals for corrosion or damage before installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing dependable performance for your vehicle's electrical system. The 645-513 connector is backed by Dorman's quality standards, ensuring durability and fitment accuracy. Please refer to Dorman's warranty policy for specific coverage details.
