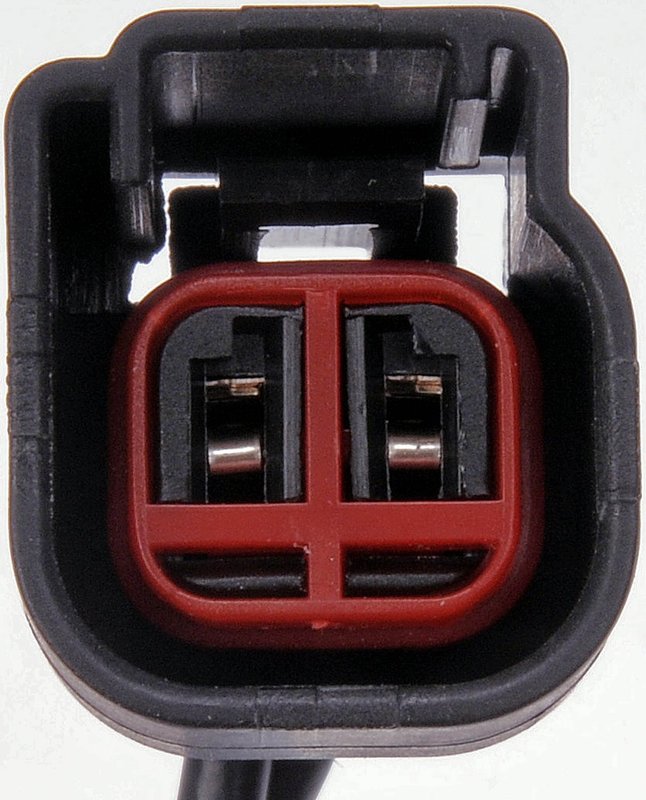

Dorman 645-525 Door Lock Module Connector

Door Lock Module Connector for Ford Applications

Dorman 645-525 is a replacement electrical connector built to match the original connector’s appearance and function on specified Ford, Lincoln, and Mercury applications. It uses quality materials for dependable electrical contact and long-term durability in demanding underhood conditions.

Key Features

• Replacement door lock module connector for OE-style service
• 2-cavity female connector design for A/C compressor clutch applications
• 12-inch wiring harness length for repair and splice flexibility
• 16-gauge wire with nickel plated copper terminals
• Spade terminal type with female terminal gender
• Designed for direct repair of damaged, heat-affected, or corroded connector ends

Detailed Description

This Dorman 645-525 connector is engineered for vehicles that use a 2-cavity female connector for the A/C compressor clutch, including many Ford F-150, Explorer, Mustang, Taurus, Fusion, Focus, and Lincoln MKZ applications. It is built to restore a secure electrical connection where the original connector has failed from wear, corrosion, or heat damage. The nickel plated copper terminals and 16-gauge wire support stable conductivity, while the 12-inch harness length gives technicians room to complete a clean repair. This part cross-references Standard Ignition S-1757 for the same application.

What It Helps Fix

• Intermittent A/C compressor clutch engagement caused by a damaged connector
• Open circuits from broken, burnt, or corroded wiring at the connector end
• Loose terminal contact that can interrupt compressor operation
• Heat-related connector deterioration near the compressor harness
• Electrical repair needs on Ford, Lincoln, and Mercury vehicles with a 2-cavity female connector

Installation Notes and Tips

Verify the connector style, cavity count, terminal gender, and wire gauge before installation. Match the vehicle harness and compressor clutch connector layout to the original part, then splice the repair harness using proper electrical repair practices. Confirm secure terminal seating and inspect the surrounding harness for additional damage before reconnecting the system.

Quality Assurance

Dorman designs this connector to match the original hardware’s fit and function on specified applications. It is made from quality materials for reliable performance and durability in automotive electrical repair.
