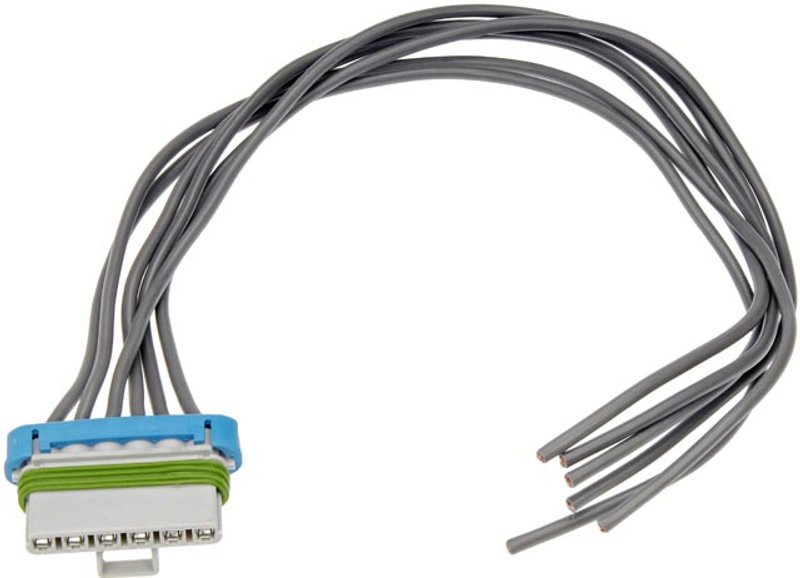

Dorman 645-542 HVAC Blower Motor Resistor Connector

Overview of Dorman HVAC Blower Motor Resistor Connector 645-542

The Dorman 645-542 HVAC blower motor resistor connector is designed for reliable electrical connections in HVAC systems of select Chevrolet and GMC vehicles. This connector ensures proper function of the blower motor resistor, maintaining consistent airflow and temperature control in your vehicle's cabin.

• Wire gauge measurement: 12 gauge for optimal current handling
• Terminal type: Blade terminals for secure and easy connection
• Wire quantity: 6 wires included for comprehensive wiring needs
• Terminal gender: Female terminals compatible with male counterparts
• Overall length: 16.5 inches for flexible installation
• Terminal material: Tin brass (tin plated) for corrosion resistance
• Package includes 1 harness and 6 butt connectors for complete repair

Detailed Product Description

The Dorman 645-542 connector is engineered to meet the electrical demands of HVAC blower motor resistor circuits in Chevrolet Astro, Express 1500/2500/3500, GMC G30, Safari, and Savana 1500/2500/3500 models. Featuring 12-gauge wiring, this connector supports the necessary current flow to maintain blower motor performance. The blade-type female terminals, made from tin-plated brass, provide durable and corrosion-resistant connections that withstand automotive environments. With an overall length of 16.5 inches, the harness offers sufficient reach for straightforward installation and wiring routing.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with the following vehicles:

• Chevrolet Astro
• Chevrolet Express 1500, 2500, 3500
• GMC G30
• GMC Safari
• GMC Savana 1500, 2500, 3500

Common Issues Addressed by Part Number 645-542

• Intermittent blower motor operation due to faulty resistor connections
• HVAC blower motor resistor failure caused by poor electrical contact
• Blower motor speeds not functioning correctly
• Corroded or damaged connector terminals affecting airflow control
• Wiring harness damage leading to HVAC system malfunctions

Installation Notes and Tips

When installing the Dorman 645-542 connector, ensure the vehicle's battery is disconnected to prevent electrical shorts. Use the included 6 butt connectors to splice wires securely, maintaining proper wire gauge and terminal orientation. Verify that blade terminals are fully seated to avoid loose connections. Routing the harness away from heat sources and moving parts will extend the service life of the connector.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance in automotive HVAC systems. The 645-542 connector features corrosion-resistant tin-plated brass terminals for durability. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in materials and workmanship.
